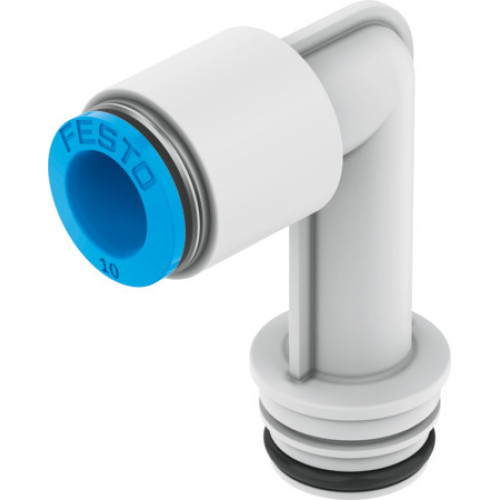

QSPLLKG20-8 Cartridge

Manufacturer's No: QSPLLKG20-8     Manufacturer: Festo
QSPLLKG20-8 Cartridge

Availability Available to order

£3.36
  • Cartridge model: QSPLLKG20-8
  • Polymer version in grey color
  • L-shape, long design with mounting pin
  • Cartridge size: 20 mm for tubing O.D. 8 mm
  • Package quantity: 10 pieces
  • Nominal size: 4.8 mm
  • Seal type on screwed plug: O-ring
  • Operating pressure range: -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi)
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Lubricated operation possible

Read more

  • Corrosion resistance class: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature range: -5°C to 60°C
  • Product weight: 11 g
  • Material: Housing - PA-reinforced, Release ring - POM, Tubing seal - NBR, Tubing clamp component - High-alloy stainless steel
  • Pneumatic connection: Port 1 for 20 mm cartridge, Port 2 for tubing with 8 mm outside diameter
  • Design based on push-pull principle
  • Mounting type: Mounting pin
  • Release ring color: Blue
  • RoHS-compliant materials


Product

Manufacturer Material ID -
QSPLLKG20-8
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
JP
UNSPSC -
41111926
Festo

Availability Available to order

£3.36
