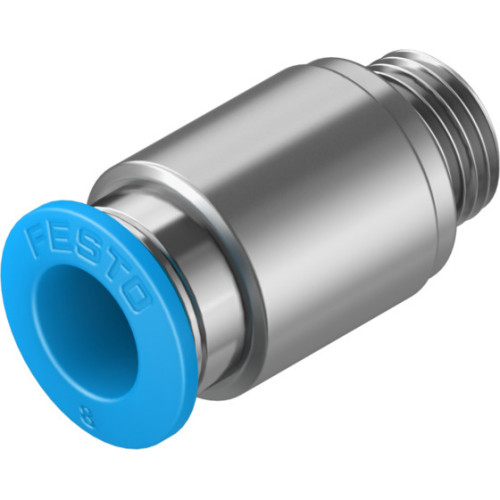

QS-G1/8-8-I-100 Push-in fitting

Manufacturer's No: QS-G1/8-8-I-100     Manufacturer: Festo
QS-G1/8-8-I-100 Push-in fitting

Availability Available to order

£2.28
  • Push-in fitting QS-G1/8-8-I-100
  • Straight design with internal hexagon
  • Male thread G1/8 for tubing O.D. 8mm
  • Package quantity: 100 pieces
  • Operating pressure range: -0.095 MPa to 6 bar (-13.775 psi to 87 psi)
  • Temperature-dependent operating pressure: -0.095 MPa to 14 bar (-13.775 psi to 203 psi)
  • Maximum water pressure: 0.6 MPa at 50°C
  • Operating medium: Compressed air and water (liquid, ice-free)
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Cleanroom class: Class 4 according to ISO 14644-1

Read more

  • Ambient temperature range: -10°C to 80°C
  • Nominal torque: 5.4 Nm with ±20% tolerance
  • Product weight: 12g
  • Material: Housing - Brass, nickel-plated; Release ring - POM; Tubing seal - NBR; Tubing clamp component - High-alloy stainless steel
  • RoHS-compliant materials
  • Colour of release ring: Blue
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Note: Lubricated operation possible; G-thread for water requires sealing ring type OL as additional accessory
  • Mounting: Internal hexagon, size 5mm
  • Type of seal on screwed plug: Sealing ring
  • Type of mounting: Internal hexagon, size 5mm
  • Pneumatic connection: Port 1 - Male thread G1/8; Port 2 - For tubing O.D. 8mm


Product

Manufacturer Material ID -
QS-G1/8-8-I-100
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
JP
UNSPSC -
41111926
