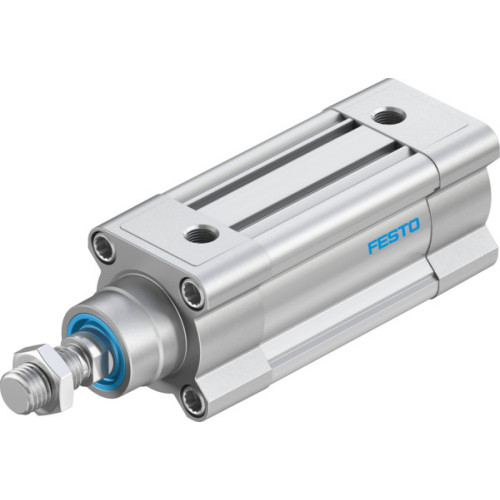

DSBC-50-50-PPSA-N3 ISO cylinder

Manufacturer's No: DSBC-50-50-PPSA-N3     Manufacturer: Festo
DSBC-50-50-PPSA-N3 ISO cylinder

Availability Available to order

£155.80
  • ISO cylinder DSBC-50-50-PPSA-N3 with self-adjusting pneumatic end-position cushioning
  • Stroke: 50 mm
  • Piston diameter: 50 mm
  • Piston rod thread: M16x1.5
  • Cushioning: Self-adjusting pneumatic end-position cushioning
  • Conforms to standard: ISO 15552
  • Operating pressure: 0.04 MPa to 1.2 MPa (0.4 bar to 12 bar)
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress

Read more

  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature: -20°C to 80°C
  • Impact energy in end positions: 1 J
  • Cushioning length: 22 mm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 990 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 1178 N
  • Moving mass: 490 g
  • Product weight: 1470 g
  • Type of mounting: Via female thread or with accessories
  • Pneumatic connection: G1/4
  • Materials:
    • Cover: Die-cast aluminium, coated
    • Piston seal: TPE-U(PU)
    • Piston: Wrought aluminium alloy
    • Piston rod: High-alloy steel
    • Piston rod wiper: TPE-U(PU)
    • Buffer seal: TPE-U(PU)
    • Cushioning boss: POM
    • Cylinder barrel: Smooth-anodised wrought aluminium alloy
    • Nut: Galvanised steel
    • Bearing: POM
    • Collar screws: Galvanised steel


Product

Manufacturer Material ID -
DSBC-50-50-PPSA-N3
Net Weight -
1.46kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
27131700
