1578518

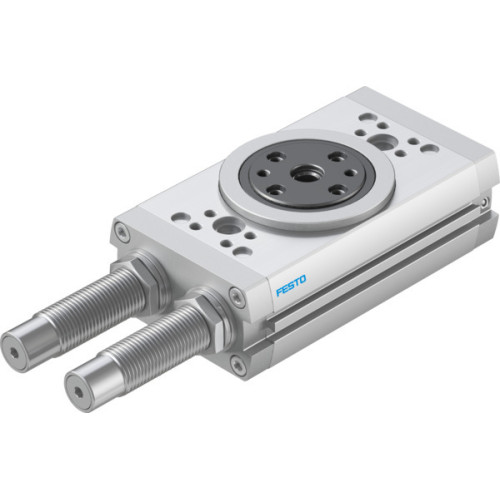

DRRD-32-180-FH-Y9A Semi-rotary drive

Manufacturer's No: DRRD-32-180-FH-Y9A     Manufacturer: Festo
DRRD-32-180-FH-Y9A Semi-rotary drive

Availability On Request

£1,034.93
  • Model: DRRD-32-180-FH-Y9A
  • Size: 32
  • Swivel Angle: 180°
  • Cushioning: Internal hydraulic cushioning
  • Mounting Position: Optional
  • Design: Rack and pinion
  • Position Detection: Via proximity switch
  • Operating Pressure: 0.2 MPa, 1 MPa, 2 bar, 10 bar
  • Mode of Operation: Double-acting
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Read more

  • LABS (PWIS) Conformity: VDMA24364 zone III
  • Ambient Temperature: -10°C to 60°C
  • Theoretical Torque at 0.6 MPa: 10.1 Nm
  • Permissible Mass Moment of Inertia: 2.6 kgm^2
  • Product Weight: 2976 g
  • Type of Mounting: With through-hole or via female thread
  • Pneumatic Connection: G1/8
  • Materials: RoHS-compliant, tempered steel drive shaft, wrought aluminum alloy cover (anodized), NBR and TPE-U(PU) seals, wrought aluminum alloy housing (smooth anodized)


Product

Manufacturer Material ID -
DRRD-32-180-FH-Y9A
Net Weight -
3.17kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
27131700
Festo

Availability On Request

£1,034.93
