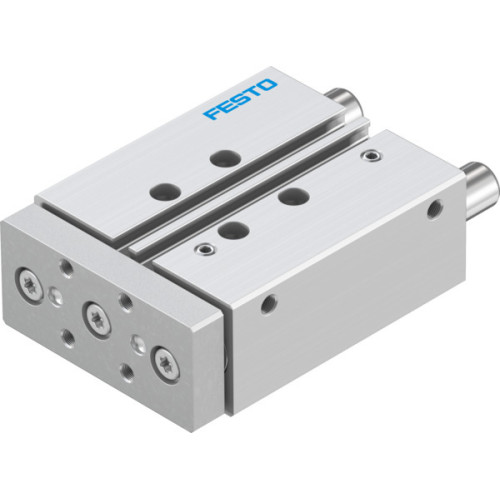

DFM-16-40-P-A-GF Guided drive

Manufacturer's No: DFM-16-40-P-A-GF     Manufacturer: Festo
DFM-16-40-P-A-GF Guided drive

Availability On Request

£228.05
  • Guided drive DFM-16-40-P-A-GF with integrated guide
  • Stroke: 40 mm, Piston diameter: 16 mm
  • Operating pressure: 0.2 MPa, 1 MPa, 2 bar, 10 bar
  • Max. speed: 0.8 m/s, Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: -20°C to 80°C
  • Max. force Fy, Fz: 608 N, Max. moment Mx, My, Mz: 13.98 Nm, 10.34 Nm, 10.34 Nm
  • Max. permissible torque load Mx: 2.44 Nm

Read more

  • Moving mass: 343 g, Product weight: 710 g
  • Material cover, housing: Wrought aluminium alloy, Material seals: NBR, Material piston rod: High-alloy stainless steel
  • Pneumatic connection: M5, RoHS-compliant materials


Product

Manufacturer Material ID -
DFM-16-40-P-A-GF
Net Weight -
0.72kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
27131700
Festo

Availability On Request

£228.05
