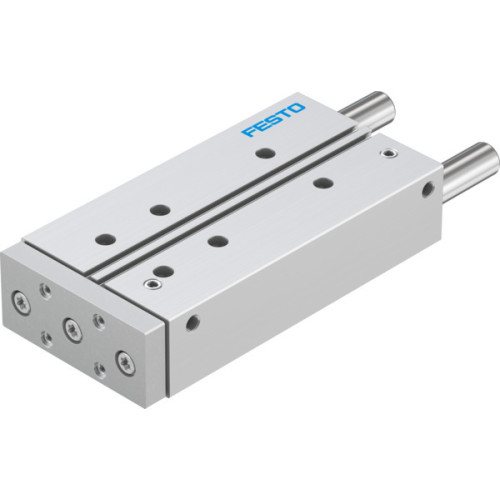

DFM-32-160-P-A-GF Guided drive

Manufacturer's No: DFM-32-160-P-A-GF     Manufacturer: Festo
DFM-32-160-P-A-GF Guided drive

Availability On Request

£468.93
  • Guided drive DFM-32-160-P-A-GF with integrated guide
  • Stroke: 160 mm, Piston diameter: 32 mm
  • Operating mode: Yoke, Cushioning: Flexible cushioning rings/plates at both ends
  • Max. speed: 0.8 m/s, Mode of operation: Double-acting
  • Operating pressure: 0.15 MPa, 1 MPa, 1.5 bar, 10 bar
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: -20°C to 80°C
  • Max. force: Fy 1227 N, Fz 1227 N

Read more

  • Max. moment: Mx 47.84 Nm, My 47.84 Nm, Mz 47.84 Nm
  • Max. permissible torque load: Mx 6.54 Nm
  • Moving mass: 2003 g, Product weight: 4149 g
  • Pneumatic connection: G1/8
  • Material: Cover - Wrought aluminium alloy, Seals - NBR, Housing - Wrought aluminium alloy, Piston rod - High-alloy stainless steel


Product

Manufacturer Material ID -
DFM-32-160-P-A-GF
Net Weight -
4.13kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
27131700
Festo

Availability On Request

£468.93
