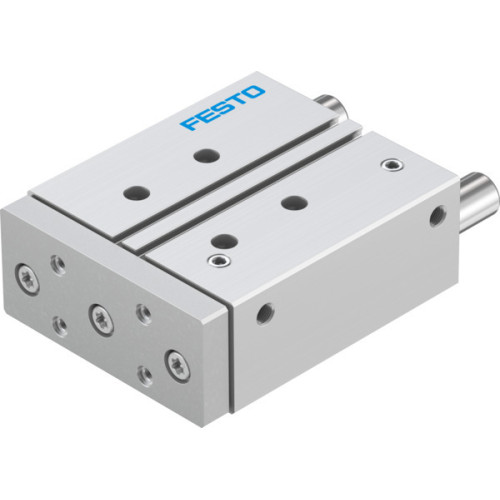

DFM-40-80-P-A-GF Guided drive

Manufacturer's No: DFM-40-80-P-A-GF     Manufacturer: Festo
DFM-40-80-P-A-GF Guided drive

Availability On Request

£424.59
  • Guided drive DFM-40-80-P-A-GF with integrated guide
  • Stroke: 80 mm, Piston diameter: 40 mm
  • Operating pressure: 0.15 MPa, 1 MPa, 1.5 bar, 10 bar
  • Max. speed: 0.8 m/s, Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: -20°C to 80°C
  • Max. force Fy: 1227 N, Max. force Fz: 1227 N
  • Max. moment Mx: 53.97 Nm, Max. moment My: 35.57 Nm

Read more

  • Max. permissible torque load Mx: 8.98 Nm
  • Moving mass: 1629 g, Product weight: 3261 g
  • Material cover: Wrought aluminium alloy, Material seals: NBR
  • Material housing: Wrought aluminium alloy, Material piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DFM-40-80-P-A-GF
Net Weight -
3.22kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
27131700
Festo

Availability On Request

£424.59
