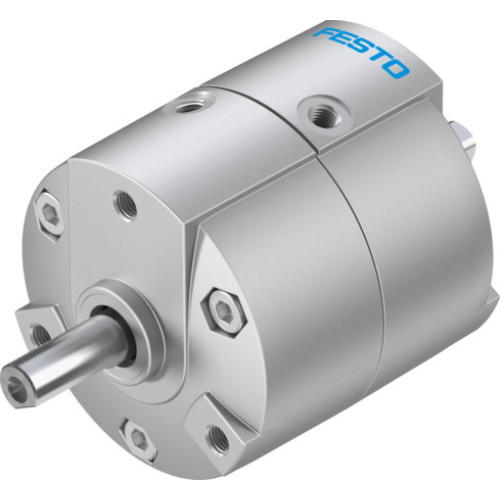

DRVS-16-180-P Semi-rotary drive

Manufacturer's No: DRVS-16-180-P     Manufacturer: Festo
DRVS-16-180-P Semi-rotary drive

Availability On Request

£128.64
  • Semi-rotary drive with size 16 and swivel angle of 180 degrees
  • Cushioning angle of 0.5 degrees with elastic cushioning rings/plates at both ends
  • Double-acting vane design with position detection via proximity switch
  • Operating pressure ranges from 0.25 MPa to 8 bar, with max swivel frequency of 3 Hz at 0.6 MPa
  • Repetition accuracy of 1 degree and corrosion resistance class CRC: 1
  • Cleanroom class 6 compliant with ambient temperature range from 0°C to 60°C
  • Max stop force of 160 N, max axial force of 25 N, and max radial force of 30 N
  • Theoretical torque of 2 Nm at 0.6 MPa with permissible mass moment of inertia of 0.01 kgm²
  • Product weight of 270 g with mounting via female thread and pneumatic connection M5
  • RoHS-compliant materials including nickel-plated steel drive shaft, TPE-U(PU) seals, and painted die-cast aluminum housing


Product

Manufacturer Material ID -
DRVS-16-180-P
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
26101502
Festo

Availability On Request

£128.64
