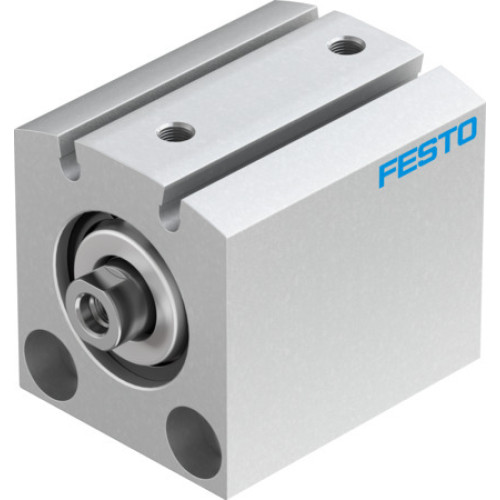

ADVC-25-15-I-P-A Short-stroke cylinder

Manufacturer's No: ADVC-25-15-I-P-A     Manufacturer: Festo
ADVC-25-15-I-P-A Short-stroke cylinder

Availability Available to order

£85.925
  • Short-stroke cylinder ADVC-25-15-I-P-A for proximity sensing
  • Stroke: 15 mm
  • Piston diameter: 25 mm
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Mode of operation: Double-acting
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar, 14.5 psi, 145 psi
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -20°C to 80°C

Read more

  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 247 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 295 N
  • Moving mass: 38 g, for 0 mm stroke: 29 g, additional per 10 mm stroke: 6 g
  • Product weight: 177 g, for 0 mm stroke: 134 g, additional per 10 mm stroke: 34 g
  • Type of mounting: With through-hole, with accessories, either
  • Pneumatic connection: M5
  • Materials: RoHS-compliant, cover - wrought aluminium alloy, anodised; seals - TPE-U(PU); housing - wrought aluminium alloy, anodised; piston rod - high-alloy steel


Product

Manufacturer Material ID -
ADVC-25-15-I-P-A
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Max. output current -
- Milliampere
Type of analogy output -
UN
Blind zone -
- Millimetre
Setting procedure -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Standard for interfaces -
UN
Relative linearity deflection -
- Percentage
Relative repeat accuracy -
- Percentage
Supply voltage -
- Volt
Material active area of sensor -
UN
Material of cable sheath -
UN
AWG-number -
-
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Adjustable distance -
- Millimetre
Material housing -
Brass
Diameter sensor -
12 Millimetre
Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Housing material -
Brass
Length of sensor -
64 Millimetre
Measuring range length -
15 Millimetre
No load current -
30 Milliampere
Switching frequency -
52 Hertz
Type of electric connection -
Connector M12
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Voltage type -
DC
