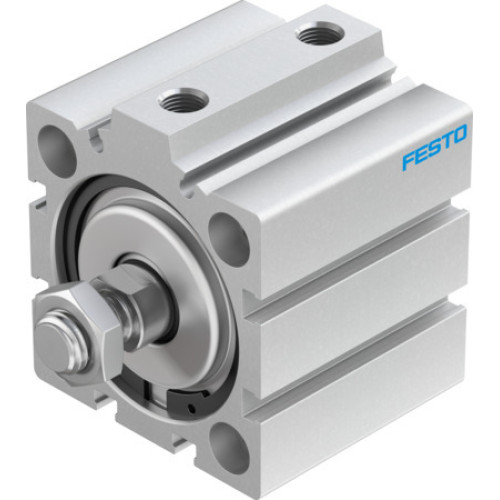

ADVC-50-25-A-P Short-stroke cylinder

Manufacturer's No: ADVC-50-25-A-P     Manufacturer: Festo
ADVC-50-25-A-P Short-stroke cylinder

Availability Available to order

£148.1875
  • Short-stroke cylinder ADVC-50-25-A-P
  • Stroke: 25 mm
  • Piston diameter: 50 mm
  • Based on standards: ISO 6431, Hole pattern, VDMA 24562
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Operating pressure: 0.06 MPa, 1 MPa, 0.6 bar, 10 bar, 8.7 psi, 145 psi
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -20°C to 80°C

Read more

  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 1057 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 1178 N
  • Moving mass: 143 g, for 0 mm stroke: 111 g, additional per 10 mm stroke: 16 g
  • Product weight: 481 g, for 0 mm stroke: 357 g, additional per 10 mm stroke: 62 g
  • Type of mounting: With through-hole, with accessories, either
  • Pneumatic connection: G1/8
  • Materials: RoHS-compliant, cover - wrought aluminum alloy, anodized; seals - NBR, TPE-U(PU); housing - wrought aluminum alloy, anodized; piston rod - high-alloy steel


Product

Manufacturer Material ID -
ADVC-50-25-A-P
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
8544 4290
Country of Origin -
DE
UNSPSC -
41111926
Festo

Availability Available to order

£148.1875
