2TLA019995R1000

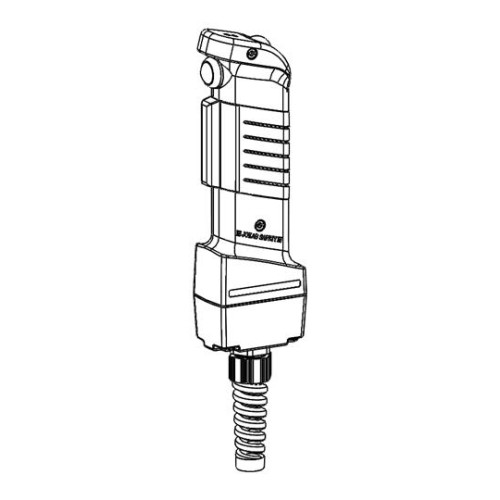

JSHD4-2-AJ Enabling Switch

Manufacturer's No: 19-995-10     Manufacturer: ABB
JSHD4-2-AJ Enabling Switch

Availability On Request

POA
  • JSHD4-2-AJ Enabling Switch
  • Three-position device
  • Top part features LEDs, front button, and top button
  • Bottom part includes cable gland and PCB with 16 screw connections


Product

Manufacturer Material ID -
19-995-10
Net Weight -
0.31kg

Additional Product Information

Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Rated operation current Ie at AC12, 125 V -
- Ampere
Rated operation current Ie at AC12, 220 V -
- Ampere
Rated operation current Ie at AC12, 24 V -
- Ampere
Degree of protection (NEMA) -
UN
Suitable for safety functions -
With status indication -
Type of switching contact -
Quick-break switch
Type of electric connection -
Screw connection
Degree of protection (IP) -
IP65
Rated operation current Ie at DC-12, 24 V -
0 Ampere
Performance level acc. EN ISO 13849-1 -
Level e
Cross-wire monitoring possible -
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
Number of extra push buttons -
2
