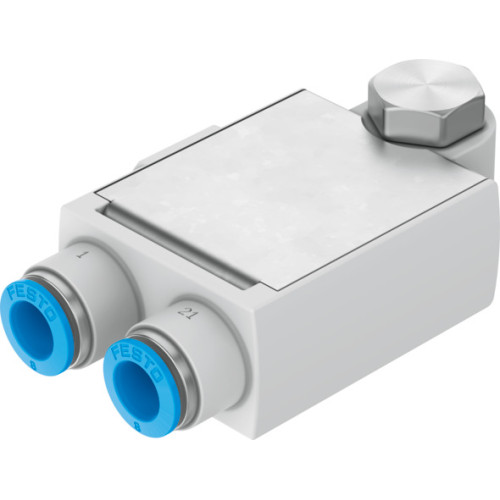

VBNF-LBA-G14-Q8 Check valve

Manufacturer's No: VBNF-LBA-G14-Q8     Manufacturer: Festo
VBNF-LBA-G14-Q8 Check valve

Availability Available to order

£81.04
  • Valve function: Piloted non-return function
  • Pneumatic connection, port 1: QS-8
  • Pneumatic connection, port 2: G1/4
  • Operating pressure: 0.02 MPa, 1 MPa, 0.2 bar, 10 bar
  • Pilot pressure: 0.2 MPa, 1 MPa, 2 bar, 10 bar, 29 psi, 145 psi
  • Ambient temperature: -10°C to 60°C
  • Material housing: PBT
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Standard flow rate 1->2 (6-0): 1100 L/min
  • Standard nominal flow rate 1->2 (6-5): 620 L/min

Read more

  • Switching time off: 11 ms, Switching time on: 8 ms
  • Manual exhaust function: Non-detenting
  • Rotatability: 360°/no continuous swiveling permissible
  • Mounting position: Optional
  • Nominal torque: 10 Nm, Tolerance for nominal tightening torque: ± 20%
  • Product weight: 65.6 g
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature: -10°C to 60°C
  • Pilot medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Material covering: ES-BE, Material cover: PBT, Material seals: NBR
  • Material hollow bolt: Wrought aluminum alloy, Material release ring: POM
  • Note on operating and pilot medium: Lubricated operation possible
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
VBNF-LBA-G14-Q8
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
84813099
Country of Origin -
HU
UNSPSC -
40141600
Festo

Availability Available to order

£81.04
