1FK70422AF711CH0

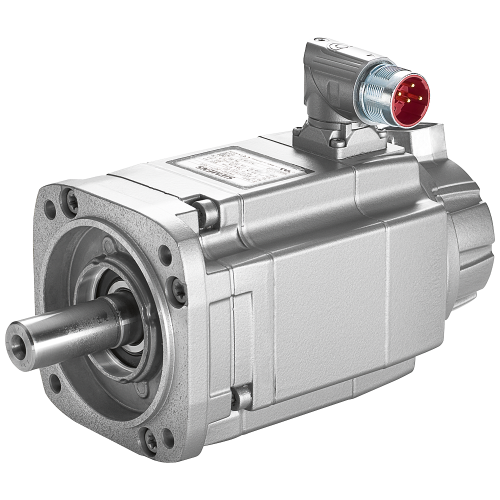

SIMOTICS S SIMOTICS S-1FK7 Synchronous motor 1FK7-CT PN=0.82kW; UDC=600V M0=3Nm (100K); NN=3000rpm;

Manufacturer's No: 1FK7042-2AF71-1CH0     Manufacturer: Siemens
SIMOTICS S SIMOTICS S-1FK7 Synchronous motor 1FK7-CT PN=0.82kW; UDC=600V M0=3Nm (100K); NN=3000rpm;

Availability Back Order

£1,974.58
  • Motor Type: SIMOTICS S-1FK7 1FK7-CT synchronous motor
  • Power Rating: 0.82 kW
  • Rated Voltage: 600 VDC
  • Rated Torque: 3 Nm
  • Rated Speed: 3000 rpm
  • Cooling: Naturally cooled design
  • Flange: MB 5 (IM V1, IM V3)
  • Connector: Power connector, rotatable
  • Encoder: Absolute encoder 24 bit + 12 bit multiturn with DRIVE-CLiQ interface (encoder AM24DQI)
  • Shaft: Plain shaft, tolerance N

Read more

  • Additional Feature: Holding brake
  • Protection Level: IP64
Instructional video
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
1FK7042-2AF71-1CH0
Net Weight -
6.90kg

Additional Product Information

Commodity Code -
85015220
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
26101115

Technical Specification

Model -
UN
Voltage type -
UN
Rated current -
- Ampere
Rated voltage -
- Volt
Number of phases -
-
Energy efficiency class -
UN
Construction type -
UN
Number of poles -
-
Rated frequency -
- Hertz
Operation temperature -
- Degrees celsius
Rated rotational speed at rated frequency -
- Per minute
Rated performance at rated frequency -
- Kilowatt
Degree of protection (IP) -
UN
Duty cycle -
UN
Frame size acc. IEC -
- Millimetre
Full-load efficiency -
- Percentage
Starting current ratio -
-
Starting torque ratio -
-
Breakdown torque ratio -
-
Voltage anti-condensation heater -
- Volt
Output power anti-condensation heater -
- Watt
Intrinsic safety (IS) -
UN
Cooling method -
UN
Shaft end type -
UN
Vacuum pressure impregnation (VPI) -
UN
Degree of protection (NEMA) -
UN
Bearing -
UN
Insulation class acc. IEC -
UN
Nominal torque -
- Newtonmetre
Power factor -
-

Availability Back Order

£1,974.58
Sign in or Register for customer prices.

Additional Information
