1FK70422AF711QB2

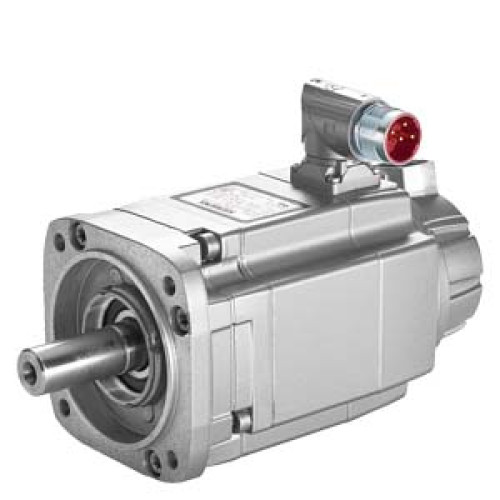

SIMOTICS S SIMOTICS S-1FK7 1FK7-CT synchronous motor PN=0.82 kW UDC=600 V M0=3 Nm (100K); NN=3000 r/min; naturally cooled design M

Manufacturer's No: 1FK7042-2AF71-1QB2     Manufacturer: Siemens
SIMOTICS S SIMOTICS S-1FK7 1FK7-CT synchronous motor PN=0.82 kW UDC=600 V M0=3 Nm (100K); NN=3000 r/min; naturally cooled design MB 5 (IM V1, IM V3) flange 1 power connector rotatable absolute encode

Availability On Request

POA
  • Product Name: SIMOTICS S-1FK7 Synchronous Motor
  • Power Rating: 0.82 kW
  • Voltage: 600 V DC
  • Torque: 3 Nm (at 100K)
  • Rated Speed: 3000 r/min
  • Cooling Design: Naturally cooled
  • Mounting Configuration: MB 5 (IM V1, IM V3) flange
  • Power Connector: Rotatable
  • Encoder: Absolute encoder single-turn 20 bit with DRIVE-CLiQ interface (encoder AS20DQI)
  • Shaft: With feather key, tolerance N

Read more

  • Holding Brake: Included
  • Degree of Protection:
    • Motor: IP65
    • DE Flange: IP67


Product

Manufacturer Material ID -
1FK7042-2AF71-1QB2
Net Weight -
6.90kg

Additional Product Information

Commodity Code -
85015220
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N_CNDU
RoHs Compliance -
Yes
UNSPSC -
26101601

Technical Specification

Model -
UN
Voltage type -
UN
Rated current -
- Ampere
Rated voltage -
- Volt
Number of phases -
-
Energy efficiency class -
UN
Construction type -
UN
Number of poles -
-
Rated frequency -
- Hertz
Operation temperature -
- Degrees celsius
Rated rotational speed at rated frequency -
- Per minute
Rated performance at rated frequency -
- Kilowatt
Degree of protection (IP) -
UN
Duty cycle -
UN
Frame size acc. IEC -
- Millimetre
Full-load efficiency -
- Percentage
Starting current ratio -
-
Starting torque ratio -
-
Breakdown torque ratio -
-
Voltage anti-condensation heater -
- Volt
Output power anti-condensation heater -
- Watt
Intrinsic safety (IS) -
UN
Cooling method -
UN
Shaft end type -
UN
Vacuum pressure impregnation (VPI) -
UN
Degree of protection (NEMA) -
UN
Bearing -
UN
Insulation class acc. IEC -
UN
Nominal torque -
- Newtonmetre
Power factor -
-

Availability On Request

POA
