1FL60522AF212MA1

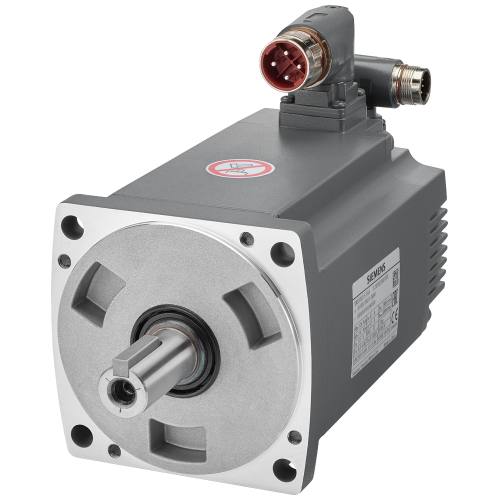

SIMOTICS S-1FL6 LI, 1AC/3AC 230V, 4.78 Nm, 3000 rpm

Manufacturer's No: 1FL6052-2AF21-2MA1     Manufacturer: Siemens
SIMOTICS S-1FL6 LI, 1AC/3AC 230V, 4.78 Nm, 3000 rpm

Availability On Request

£760.11
  • Motor model: SIMOTICS S-1FL6
  • Operating voltage: 230 V 3AC
  • Rated power: 1.5 kW
  • Rated speed: 3000 rpm
  • Rated torque: 4.78 Nm
  • Shaft diameter: 50 mm
  • Encoder type: Absolute single-turn 21-bit, 2500 incr./rev.
  • Encoder features: Angle plug, feather key
  • Tolerance: Standard (N)
  • Degree of protection: IP65

Read more

  • Compatibility: Compatible with converters SINAMICS V90

Accessories



Product

Manufacturer Material ID -
1FL6052-2AF21-2MA1
Net Weight -
6.70kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
26101115

Technical Specification

Model -
UN
Voltage type -
UN
Rated current -
- Ampere
Rated voltage -
- Volt
Number of phases -
-
Energy efficiency class -
UN
Construction type -
UN
Number of poles -
-
Rated frequency -
- Hertz
Operation temperature -
- Degrees celsius
Rated rotational speed at rated frequency -
- Per minute
Rated performance at rated frequency -
- Kilowatt
Degree of protection (IP) -
UN
Duty cycle -
UN
Frame size acc. IEC -
- Millimetre
Full-load efficiency -
- Percentage
Starting current ratio -
-
Starting torque ratio -
-
Breakdown torque ratio -
-
Voltage anti-condensation heater -
- Volt
Output power anti-condensation heater -
- Watt
Intrinsic safety (IS) -
UN
Cooling method -
UN
Shaft end type -
UN
Vacuum pressure impregnation (VPI) -
UN
Degree of protection (NEMA) -
UN
Bearing -
UN
Insulation class acc. IEC -
UN
Nominal torque -
- Newtonmetre
Power factor -
-

Availability On Request

£760.11
