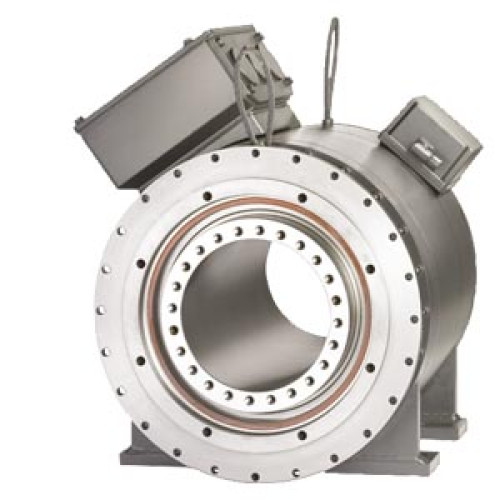

1FW31551DL725AC3

SIMOTICS T COMPLETE TORQUE MOTOR 1FW3 450RPM,18,6KW,400NM,43A,370V 500RPM,20,9KW,400NM,43A,412V 550RPM,23,0KW,400NM,43A,448V WATER

Manufacturer's No: 1FW3155-1DL72-5AC3     Manufacturer: Siemens
SIMOTICS T COMPLETE TORQUE MOTOR 1FW3 450RPM,18,6KW,400NM,43A,370V 500RPM,20,9KW,400NM,43A,412V 550RPM,23,0KW,400NM,43A,448V WATER COOLING INCREM. ENCODER 22 BIT + COMMUTATING POSITION 11 BIT (ENCODE

Availability On Request

POA
  • SIMOTICS T Complete Torque Motor 1FW3
  • Speed: 450 RPM
    • Power: 18.6 kW
    • Torque: 400 Nm
    • Current: 43 A
    • Voltage: 370 V
  • Speed: 500 RPM
    • Power: 20.9 kW
    • Torque: 400 Nm
    • Current: 43 A
    • Voltage: 412 V
  • Speed: 550 RPM
    • Power: 23.0 kW
    • Torque: 400 Nm
    • Current: 43 A
    • Voltage: 448 V
  • Water Cooling
  • Incremental Encoder: 22-bit + Commutating Position 11-bit (Encoder IC22DQ)
  • Encoder Mounting: Over Belt IMB 14
  • Terminal Box: Above, Crosswise Right Drive End
  • No Bearing
  • Hollow Shaft for Internal Clamping Element

Read more

  • Degree of Protection: IP 54
  • Storage Standard


Product

Manufacturer Material ID -
1FW3155-1DL72-5AC3
Net Weight -
179.00kg

Additional Product Information

Commodity Code -
85015230
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N_CNDU
RoHs Compliance -
Yes
UNSPSC -
39122003

Technical Specification

Model -
UN
Voltage type -
UN
Rated current -
- Ampere
Rated voltage -
- Volt
Number of phases -
-
Energy efficiency class -
UN
Construction type -
UN
Number of poles -
-
Rated frequency -
- Hertz
Operation temperature -
- Degrees celsius
Rated rotational speed at rated frequency -
- Per minute
Rated performance at rated frequency -
- Kilowatt
Degree of protection (IP) -
UN
Duty cycle -
UN
Frame size acc. IEC -
- Millimetre
Full-load efficiency -
- Percentage
Starting current ratio -
-
Starting torque ratio -
-
Breakdown torque ratio -
-
Voltage anti-condensation heater -
- Volt
Output power anti-condensation heater -
- Watt
Intrinsic safety (IS) -
UN
Cooling method -
UN
Shaft end type -
UN
Vacuum pressure impregnation (VPI) -
UN
Degree of protection (NEMA) -
UN
Bearing -
UN
Insulation class acc. IEC -
UN
Nominal torque -
- Newtonmetre
Power factor -
-
