1FW32061PH625AA0

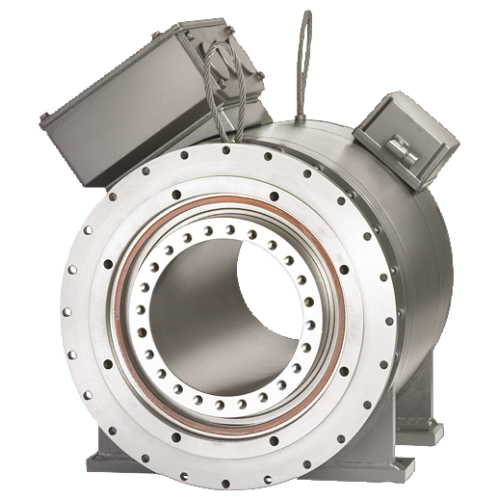

SIMOTICS T Complete torque motor 1FW3 270rpm, 42.4kW 1500Nm, 118A, 317V 300rpm, 47.1kW 1500Nm, 118A,

Manufacturer's No: 1FW3206-1PH62-5AA0     Manufacturer: Siemens
SIMOTICS T Complete torque motor 1FW3 270rpm, 42.4kW 1500Nm, 118A, 317V 300rpm, 47.1kW 1500Nm, 118A,

Availability Back Order

POA
  • SIMOTICS T Complete torque motor 1FW3
  • 270rpm, 42.4kW, 1500Nm, 118A, 317V
  • 300rpm, 47.1kW, 1500Nm, 118A, 351V
  • 330rpm, 51.8kW, 1500Nm, 118A, 384V
  • Water cooling system
  • Absolute encoder singleturn 22 bit (Encoder AS22DQ)
  • Hollow shaft sealed at the NDE encoder mounting
  • Coaxial IMB 14 terminal box
  • Temperature sensor via DRIVE CLiQ interface
  • Hollow-shaft with degree of protection IP 54

Read more

  • Storage standard


Product

Manufacturer Material ID -
1FW3206-1PH62-5AA0
Net Weight -
280.00kg

Additional Product Information

Commodity Code -
85015230
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
39122003

Availability Back Order

POA
