1LE10010DB223KA4

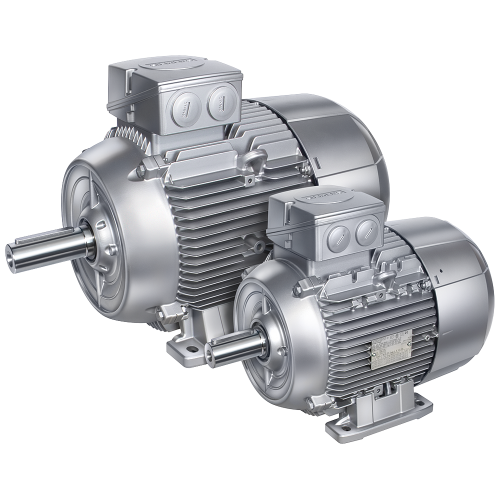

SIMOTICS GP Motor type: 1AV2082B Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 T

Manufacturer's No: 1LE1001-0DB22-3KA4     Manufacturer: Siemens
SIMOTICS GP Motor type: 1AV2082B Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 T

Availability Back Order

£420.49
  • Motor Type: SIMOTICS GP 1AV2082B
  • Low-voltage motor with IEC Squirrel-cage rotor
  • Self-ventilated with IP55 protection rating
  • Temperature class: 155(F) according to 130(B) aluminum housing
  • High Efficiency 4-pole motor
  • Size: 80M
  • Power: 0.55kW (50 Hz), 0.63kW (60 Hz)
  • Voltage: 240 VD/415 VY (50 Hz), 480 VY (60 Hz)
  • Mounting: IM B14, IM V19, IM V18 without canopy
  • Standard flange: C120 without motor protection

Read more

  • Terminal box located at the top


Product

Manufacturer Material ID -
1LE1001-0DB22-3KA4
Net Weight -
10.00kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
26101115

Technical Specification

Breakdown torque ratio -
3.1
Construction type -
IM 3601 (B14)
Cooling method -
Air
Degree of protection (NEMA) -
Other
Full-load efficiency -
77.1 Percentage
Insulation class acc. to IEC -
B
Model -
Rotary current asynchronous motor
Number of phases -
3
Number of poles -
4
Output power anti-condensation heater -
0 Watt
Overload capability -
Power factor -
0.74
Rated current -
2.3 Ampere
Rated performance at rated frequency -
0.55 Kilowatt
Rated rotational speed at rated frequency -
1440 Per minute
Rated voltage -
240 Volt
Shaft end type -
Key
Starting current ratio -
5.3
Starting torque ratio -
2.2
Suitable for frequency control -
Vacuum pressure impregnation (VPI) -
None
Voltage anti-condensation heater -
0 Volt
Voltage type -
AC

Availability Back Order

£420.49
