1LE15033AB034AA4-Z L22

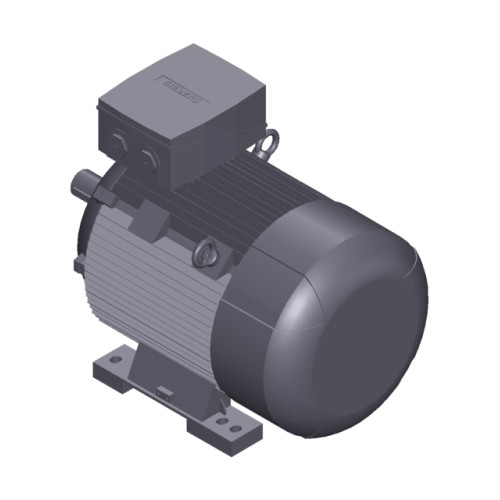

SIMOTICS SD MOTOR TYPE: 1CV3310B Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 T

Manufacturer's No: 1LE1503-3AB03-4AA4-Z L22     Manufacturer: Siemens
SIMOTICS SD MOTOR TYPE: 1CV3310B Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 T

Availability Back Order

POA
  • Motor Type: SIMOTICS SD 1CV3310B
  • Low-voltage motor with IEC Squirrel-cage rotor
  • Self-ventilated with IP55 protection rating
  • Temperature class: 155(F) according to 130(B) cast iron frame
  • Premium Efficiency IE3
  • 4-pole motor with Size 315S
  • Power: 110kW (50 Hz), 127kW (60 Hz)
  • Voltage: 400 VD/690 VY (50 Hz), 460 VD (60 Hz)
  • IM B 3 motor insulation class
  • Terminal box located at the top

Read more

  • L22 bearing design for increased transverse forces


Product

Manufacturer Material ID -
1LE1503-3AB03-4AA4-Z L22
Net Weight -
760.00kg

Additional Product Information

Commodity Code -
85015381
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
26101601

Availability Back Order

POA
