1MB10331DA234FA4

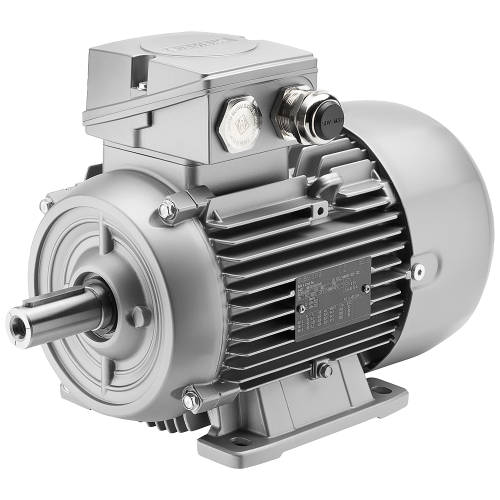

SIMOTICS XP Motor type: 1AV3162A Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 T

Manufacturer's No: 1MB1033-1DA23-4FA4     Manufacturer: Siemens
SIMOTICS XP Motor type: 1AV3162A Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 T

Availability On Request

£2,636.12
  • SIMOTICS XP Motor type: 1AV3162A
  • Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated
  • Premium Efficiency IE3
  • IP55 protection rating
  • Temperature class 155(F) according to 130(B) aluminum housing
  • 2-pole motor
  • Size: 160M
  • Power: 11 kW (50 Hz), 12.6 kW (60 Hz)
  • EX EC IIC T3 GC Version for Zone 2 according to IEC/EN 60 079-7
  • Voltage: 3 AC 50 Hz 400 VD/690 VY, 3 AC 60 Hz 460 VD

Read more

  • IM B5, flange: FF300 (A350) without motor protection
  • Terminal box located at the top


Product

Manufacturer Material ID -
1MB1033-1DA23-4FA4
Net Weight -
84.00kg

Additional Product Information

Commodity Code -
85015230
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
26101115

Availability On Request

£2,636.12
