1PH81311DF032BA1

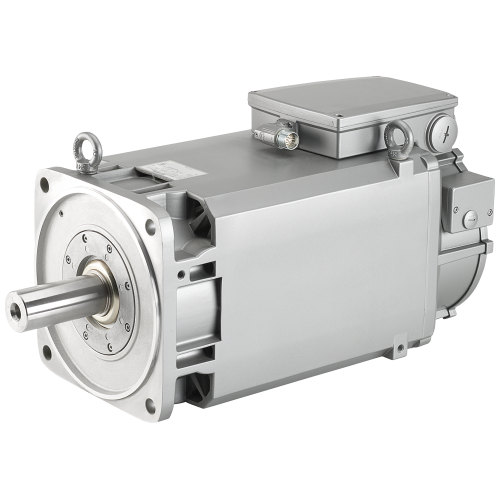

SIMOTICS M Compact induction motor 1500rpm, 11kW, 70 Nm, 24A, 360V 1750rpm, 13kW, 71Nm, 24A, 416V 20

Manufacturer's No: 1PH8131-1DF03-2BA1     Manufacturer: Siemens
SIMOTICS M Compact induction motor 1500rpm, 11kW, 70 Nm, 24A, 360V 1750rpm, 13kW, 71Nm, 24A, 416V 20

Availability Back Order

£4,931.61
  • SIMOTICS M compact asynchronous motor
  • Speeds: 1500 r/min, 1750 r/min, 2000 r/min, 2200 r/min
  • Power: 11 kW, 13 kW, 15 kW, 16.5 kW
  • Torque: 70 Nm, 71 Nm, 72 Nm
  • Current: 24 A
  • Voltages: 360 V, 416 V, 460 V, 500 V
  • Forced ventilation with air flow DE--> NDE
  • IP55 degree of protection
  • Incremental encoder 22-bit with commutation position (encoder IC22DQ) and DRIVE-CLiQ interface
  • Design: IM B35 (IM V15, IM V35)

Read more

  • Shaft with fitted key, half-key balancing bearing
  • Standard with fixed bearing
  • Vibration severity grade: R/A
  • Flange accuracy: R
  • Terminal box above with cable entry on the right
  • Signal connection D-end


Product

Manufacturer Material ID -
1PH8131-1DF03-2BA1
Net Weight -
89.00kg

Additional Product Information

Commodity Code -
85015230
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
26101110

Availability Back Order

£4,931.61
