1PH81371DF222BA1

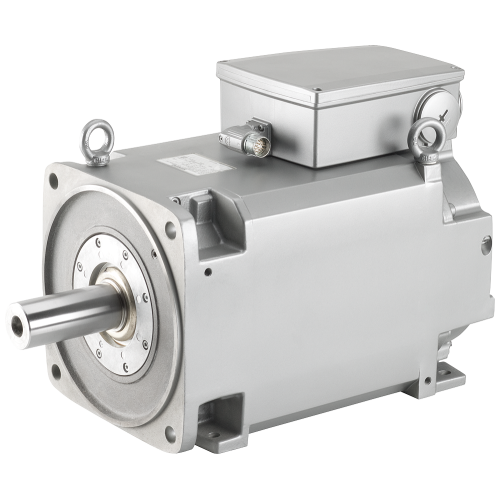

SIMOTICS M Compact induction motor 1500rpm, 27kW 172Nm, 67A, 315V 1750rpm, 31.5kW 172Nm, 67A, 365V 2

Manufacturer's No: 1PH8137-1DF22-2BA1     Manufacturer: Siemens
SIMOTICS M Compact induction motor 1500rpm, 27kW 172Nm, 67A, 315V 1750rpm, 31.5kW 172Nm, 67A, 365V 2

Availability Back Order

£6,363.68
  • SIMOTICS M compact asynchronous motor
  • Power: 39 kW
  • Speed: 2200 r/min
  • Torque: 169 Nm
  • Current: 66 A
  • Voltage: 456 V
  • Water cooling
  • Degree of protection: IP65
  • Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface
  • Design: IM B5 (IMV 1, IM V3)

Read more

  • Shaft with fitted key half-key balancing
  • Bearing: standard with fixed bearing
  • Vibration severity grade: R/A
  • Flange accuracy: R
  • Terminal box above with cable entry on the right
  • Signal connection D-end


Product

Manufacturer Material ID -
1PH8137-1DF22-2BA1
Net Weight -
157.00kg

Additional Product Information

Commodity Code -
85015230
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
26101110

Availability Back Order

£6,363.68
