1PH81841DF230BA1

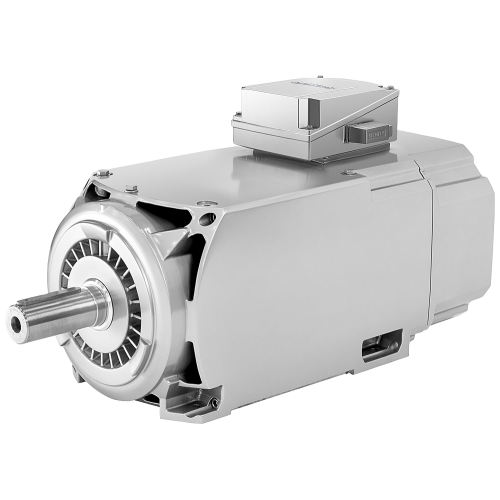

SIMOTICS M Compact induction motor 1500rpm, 70kW 446Nm, 150 A, 335V 1750rpm, 82kW 447Nm, 150 A, 390V

Manufacturer's No: 1PH8184-1DF23-0BA1     Manufacturer: Siemens
SIMOTICS M Compact induction motor 1500rpm, 70kW 446Nm, 150 A, 335V 1750rpm, 82kW 447Nm, 150 A, 390V

Availability Back Order

£12,462.92
  • SIMOTICS M compact asynchronous motor
  • Speeds: 1500 r/min, 1750 r/min, 2000 r/min
  • Power: 70 kW, 82 kW, 95 kW
  • Torque: 446 Nm, 447 Nm, 454 Nm
  • Current: 150 A, 150 A, 152 A
  • Voltage: 335 V, 390 V, 450 V
  • Water cooling system
  • IP55 degree of protection
  • Incremental encoder 22-bit with commutation position (encoder IC22DQ) and DRIVE-CLiQ interface
  • Design: IM B35 with flange A450 (IM V35)

Read more

  • Plain shaft without fitted key
  • Bearing: Standard vibration severity grade R/A
  • Shaft accuracy: Flange accuracy grade R
  • Terminal box above
  • Cable entry on the right
  • Signal connection D-end


Product

Manufacturer Material ID -
1PH8184-1DF23-0BA1
Net Weight -
340.00kg

Additional Product Information

Commodity Code -
85015381
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
26101109

Availability Back Order

£12,462.92
