1SBL357010R7000

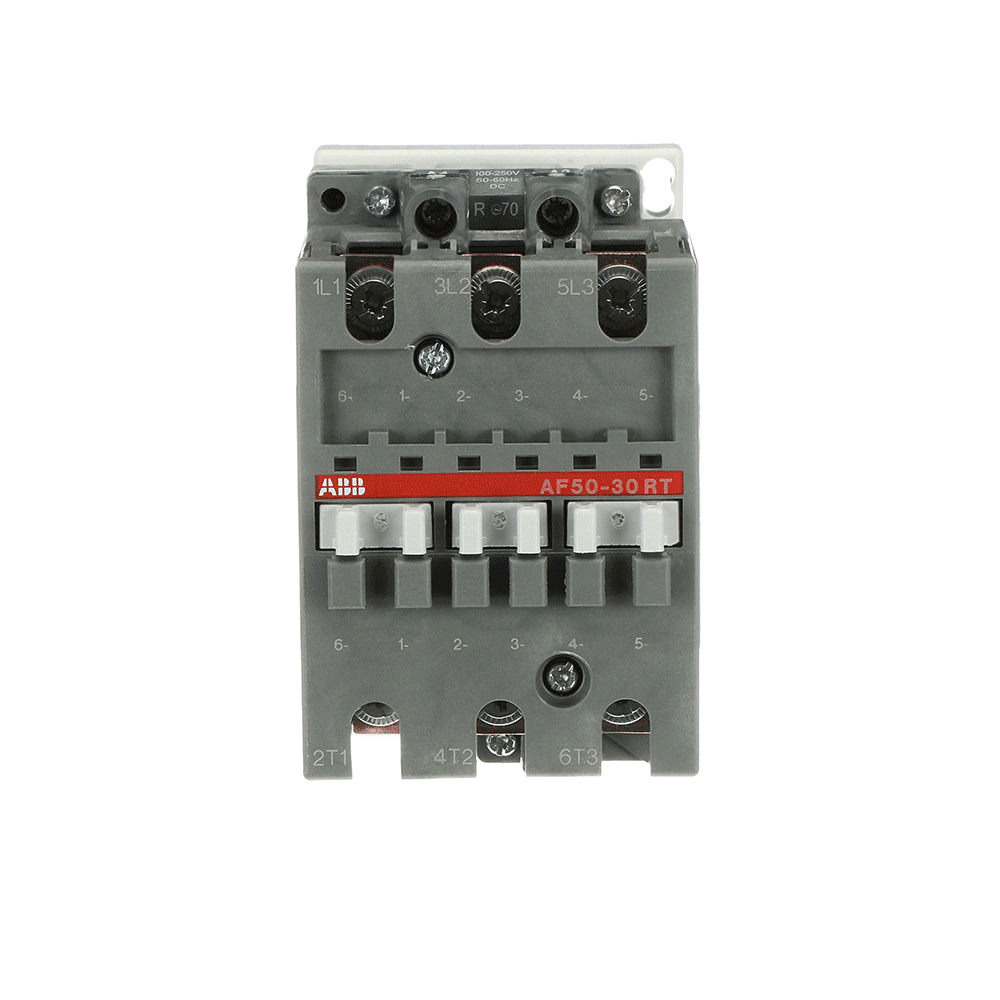

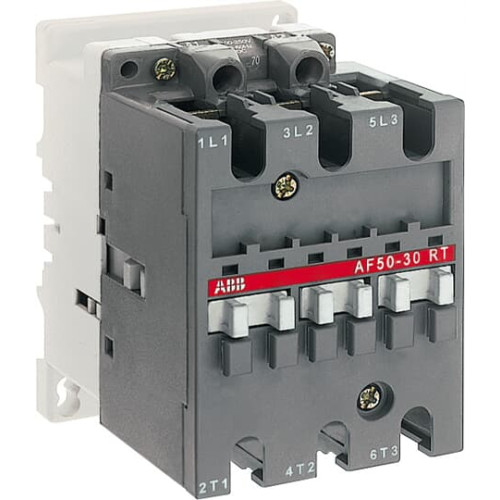

AF50-30-00RT 100-250V 50Hz / 100-250V 60Hz / 100-250V DC Contactor

Manufacturer's No: 1SBL357010R7000     Manufacturer: ABB
AF50-30-00RT 100-250V 50Hz / 100-250V 60Hz / 100-250V DC Contactor

Availability On Request

£445.74
  • AF50-30-00RT Contactor
  • Voltage Range: 100-250V AC/DC
  • Frequency: 50Hz/60Hz
  • Suitable for controlling 3-phase motors
  • Can handle power circuits up to 690V AC and 220V DC
  • Electronic coil interface for wide control voltage range
  • Can accept various supply voltages for different countries
  • Suitable for AC or DC control circuits with voltage interruptions
  • Advantages:
    • Wide voltage range
    • Can manage large voltage variations
    • Reduced power consumption
    • Distinct closing and opening
    • Noise-free operation
    • Can withstand voltage interruptions or dips (? 20 ms)
  • Design: Series 1-stack 3-pole contactors with block type design

Read more

  • Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks
  • Control circuit: AC or DC operated
  • Accessories: Wide range of accessories available


Product

Manufacturer Material ID -
1SBL357010R7000
Net Weight -
1.18kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
UNSPSC -
39121410

Technical Specification

Number of normally closed contacts as main contact -
-
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation power at AC-3, 400 V -
22 Kilowatt
Number of main contacts as normally open contact -
3
Rated operation current Ie at AC-3, 400 V -
50 Ampere
Rated operation current Ie at AC-1, 400 V -
100 Ampere
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Type of electrical connection of main circuit -
Other
Voltage type for actuating -
AC/DC
ABB

Availability On Request

£445.74
