1SDA064754R1

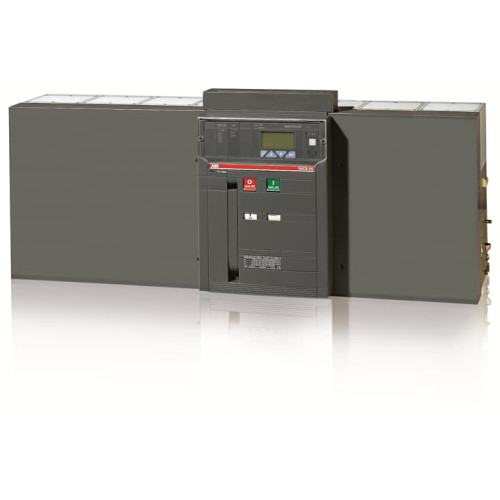

E6H/f 4000 PR123/DC In=4000A 4p W MP

Manufacturer's No: 1SDA064754R1     Manufacturer: ABB
E6H/f 4000 PR123/DC In=4000A 4p W MP

Availability Back Order

£46,541.81
E6H/f4000PR123/DCIn=4000A4pWM


Product

Manufacturer Material ID -
1SDA064754R1
Net Weight -

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Adjustment range undelayed short-circuit release -
6000 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP30
Device construction -
Built-in device slide-in technique (withdrawable)
Motor drive optional -
Number of auxiliary contacts as change-over contact -
4
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
1600 Ampere
Position of connection for main current circuit -
Connection at separate chassis part
Power loss -
704 Watt
Rated permanent current Iu -
4000 Ampere
Rated voltage -
1000 Volt
Switched-off indicator available -
Type of control element -
Push button
Type of electrical connection of main circuit -
Connection at separate chassis part
ABB

Availability Back Order

£46,541.81
