1SDA066816R1

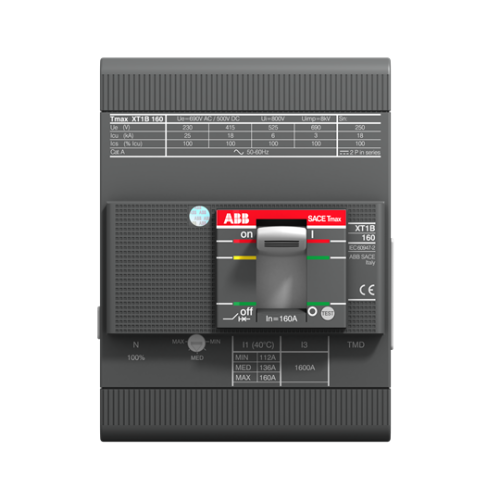

XT1B 160 TMD 63-630 4p F F

Manufacturer's No: 1SDA066816R1     Manufacturer: ABB
XT1B 160 TMD 63-630 4p F F

Availability Back Order

£344.51
  • Circuit Breaker Type: TMAX XT1B 160
  • Configuration: Four-pole
  • Front Terminals
  • Thermomagnetic Release
  • Current Rating: 63-630 A


Product

Manufacturer Material ID -
1SDA066816R1
Net Weight -
1.40kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
UN
Adjustment range short-term delayed short-circuit release -
- Ampere
Overload release current setting -
44.1 Ampere
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
18 kiloampere
Adjustment range undelayed short-circuit release -
630 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Position of connection for main current circuit -
Front
Power loss -
4.3 Watt
Rated permanent current Iu -
63 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability Back Order

£344.51
