1SDA067416R1

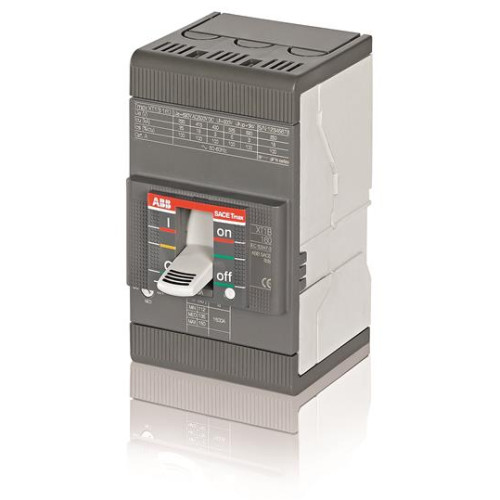

XT1N 160 TMD 100-1000 3p F F

Manufacturer's No: 1SDA067416R1     Manufacturer: ABB
XT1N 160 TMD 100-1000 3p F F

Availability On Request

£310.86
  • Circuit Breaker Type: TMAX XT1N 160
  • Configuration: Fixed three-pole
  • Terminals: Front
  • Release Type: Thermomagnetic
  • Current Rating: 100-1000 A


Product

Manufacturer Material ID -
1SDA067416R1
Net Weight -
1.10kg

Additional Product Information

Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Number of auxiliary contacts as change-over contact -
-
Degree of protection (IP) -
UN
Adjustment range short-term delayed short-circuit release -
- Ampere
Rated permanent current Iu -
160 Ampere
Number of poles -
3
Overload release current setting -
70 Ampere
Rated voltage -
220 Volt
Degree of protection (IP rating) -
IP20
Position of connection for main current circuit -
Front
Type of electrical connection of main circuit -
Bolt connection
Type of control element -
Toggle
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
36 kiloampere
Adjustment range undelayed short-circuit release -
1000 Ampere
Motor drive optional -
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Complete device with protection unit -
ABB

Availability On Request

£310.86
