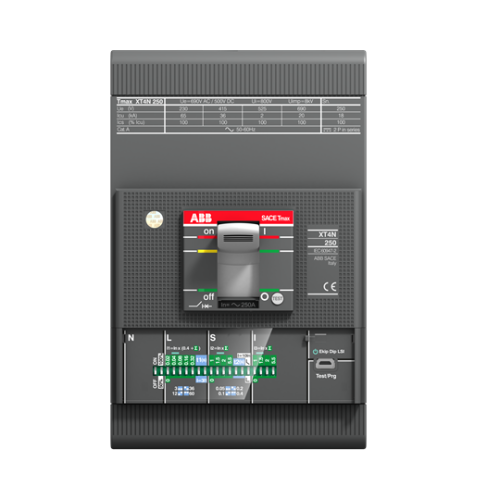

1SDA068125R1

XT4N 160 Ekip Dip LS/I In=160A 3p F F

Manufacturer's No: 1SDA068125R1     Manufacturer: ABB
XT4N 160 Ekip Dip LS/I In=160A 3p F F

Availability Back Order

£797.12
  • Model: XT4N 160 Ekip Dip LS/I
  • Current Rating: 160A
  • Configuration: 3-pole, Fixed
  • Terminals: Front
  • Release Type: Solid-state
  • Suitable for: AC circuits


Product

Manufacturer Material ID -
1SDA068125R1
Net Weight -
2.50kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
UN
Overload release current setting -
64 Ampere
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
36 kiloampere
Adjustment range short-term delayed short-circuit release -
160 Ampere
Adjustment range undelayed short-circuit release -
160 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Position of connection for main current circuit -
Front
Power loss -
8.9 Watt
Rated permanent current Iu -
160 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
