1SDA068163R1

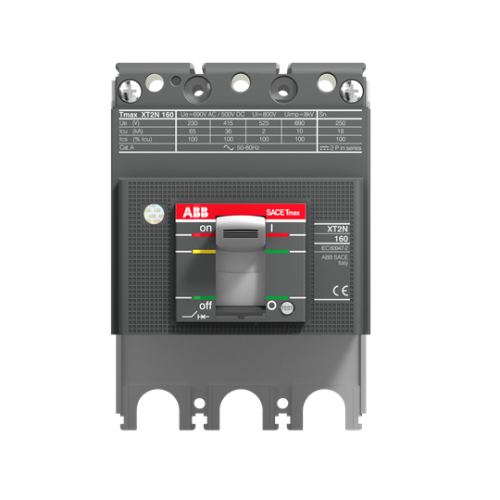

XT2N 160 BREAKING PART 3p F F

Manufacturer's No: 1SDA068163R1     Manufacturer: ABB
XT2N 160 BREAKING PART 3p F F

Availability Back Order

£238.00
  • Model: XT2N 160
  • Type: Breaking Part
  • Configuration: 3P F F
  • Features: Fixed three-pole with front terminals


Product

Manufacturer Material ID -
1SDA068163R1
Net Weight -
1.20kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
UNSPSC -
32151705

Technical Specification

Overload release current setting -
- Ampere
Degree of protection (IP) -
UN
Adjustment range short-term delayed short-circuit release -
- Ampere
Adjustment range undelayed short-circuit release -
- Ampere
Rated permanent current Iu -
160 Ampere
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
36 kiloampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Position of connection for main current circuit -
Front
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability Back Order

£238.00
