1SDA068210R1

XT3D 250 3p F F

Manufacturer's No: 1SDA068210R1     Manufacturer: ABB

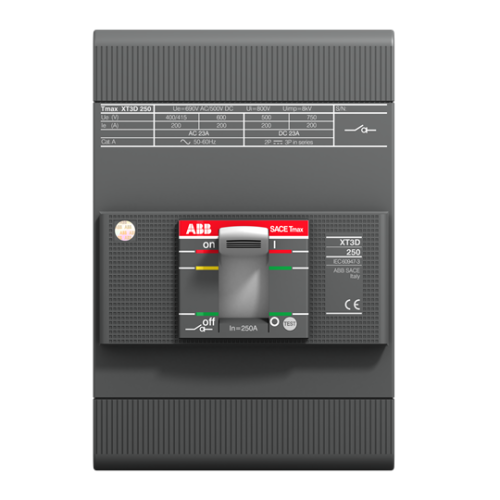

XT3D 250 3p F F

Availability On Request

£450.15
  • Model: XT3D 250 3p F F
  • Type: Switch-Disconnector
  • Configuration: Three-pole
  • Terminals: Front terminals
  • Maximum Current: 250A
  • Fixed design
  • Suitable for industrial applications


Product

Manufacturer Material ID -
1SDA068210R1
Net Weight -
1.70kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Rated operation power at AC-23, 400 V -
- Kilowatt
Switching power at 400 V -
- Kilowatt
Degree of protection (NEMA) -
UN
Type of control element -
Toggle
Colour control element -
White
Degree of protection (IP), front side -
IP20
Depth -
70 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
150 Millimetre
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Rated operating voltage -
0 Volt
Rated permanent current at AC-21, 400 V -
250 Ampere
Rated permanent current Iu -
250 Ampere
Rated short-time withstand current lcw -
3 kiloampere
Suitable for distribution board installation -
Type of electrical connection of main circuit -
Bolt connection
Version as main switch -
Width -
105 Millimetre
ABB

Availability On Request

£450.15
