1SDA068463R1

XT4V 160 MA 20 Im=100...200 3p F F

Manufacturer's No: 1SDA068463R1     Manufacturer: ABB
XT4V 160 MA 20 Im=100...200 3p F F

Availability Back Order

POA

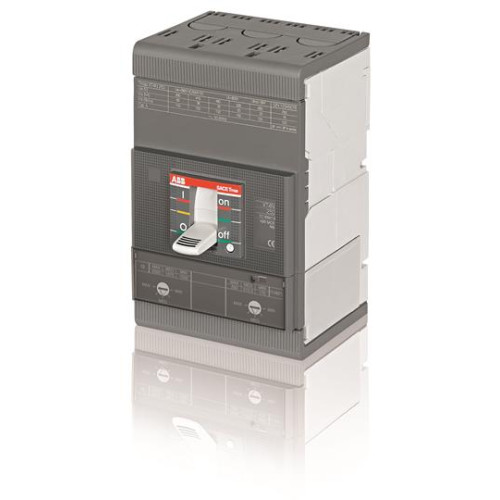

C.BREAKER TMAX XT4V 160 FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE MA Iu 20 A I3=100...200 A


Product

Manufacturer Material ID -
1SDA068463R1
Net Weight -
2.50kg

Additional Product Information

Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Overload release current setting -
- Ampere
Adjustment range short-term delayed short-circuit release -
- Ampere
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated permanent current Iu -
160 Ampere
Number of poles -
3
Number of auxiliary contacts as change-over contact -
0
Rated voltage -
220 Volt
Degree of protection (IP) -
IP20
Position of connection for main current circuit -
Front side
Type of electrical connection of main circuit -
Bolt connection
Type of control element -
Toggle
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
150 kiloampere
Adjustment range undelayed short-circuit release -
100 Ampere
Motor drive optional -
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Complete device with protection unit -
ABB
