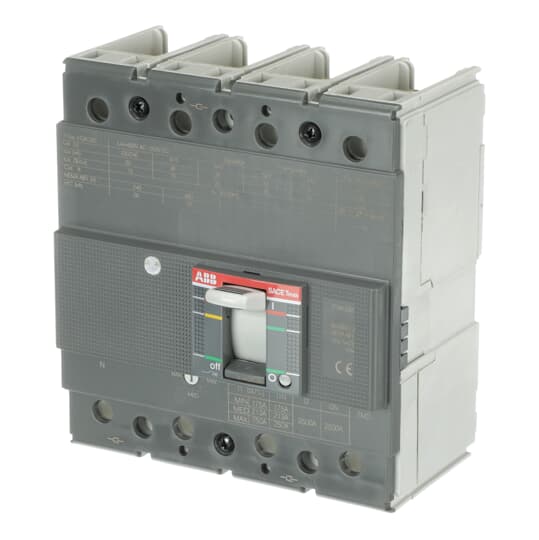

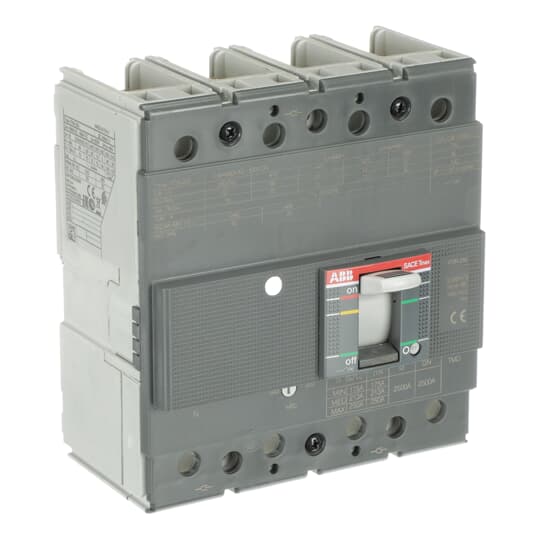

1SDA070170R1

XT3N 250 TMD 250-2500 4pFF InN=100% 50°C

Manufacturer's No: 1SDA070170R1     Manufacturer: ABB
XT3N 250 TMD 250-2500 4pFF InN=100% 50°C

Availability On Request

£1,516.39
XT3N 250 TMD 250-2500 4pFF InN=100% 50?C


Product

Manufacturer Material ID -
1SDA070170R1
Net Weight -
2.10kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
UNSPSC -
32151705

Technical Specification

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
36 kiloampere
Adjustment range undelayed short-circuit release -
2500 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
175 Ampere
Position of connection for main current circuit -
Front
Power loss -
17.8 Watt
Rated permanent current Iu -
250 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability On Request

£1,516.39
