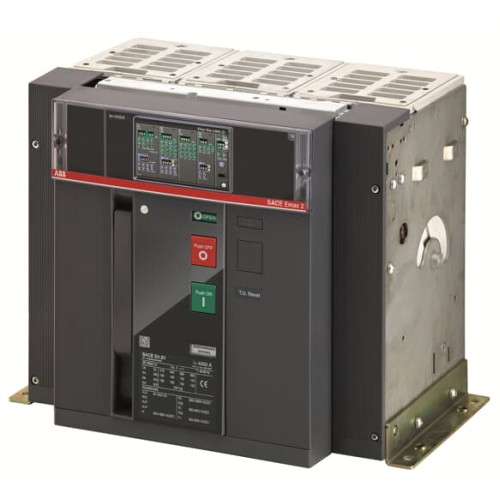

1SDA071173R1

E4.2V 3200 Ekip Dip LSIG 3p F HR

Manufacturer's No: 1SDA071173R1     Manufacturer: ABB
E4.2V 3200 Ekip Dip LSIG 3p F HR

Availability Back Order

£18,479.73
C.BREAKER SACE EMAX2 E4.2V 3200 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/DIP-LSIG R 3200 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED


Product

Manufacturer Material ID -
1SDA071173R1
Net Weight -
81.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Degree of protection (IP) -
IP30
With switched-off indicator -
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
150 kiloampere
Adjustment range short-term delayed short-circuit release -
1920 Ampere
Adjustment range undelayed short-circuit release -
4800 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP30
Device construction -
Built-in device fixed built-in technique
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
4
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
1280 Ampere
Position of connection for main current circuit -
Back
Power loss -
425 Watt
Rated permanent current Iu -
3200 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
150 kiloampere
Rated voltage -
690 Volt
Switched-off indicator available -
Type of control element -
Push button
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability Back Order

£18,479.73
