1SDA071565R1

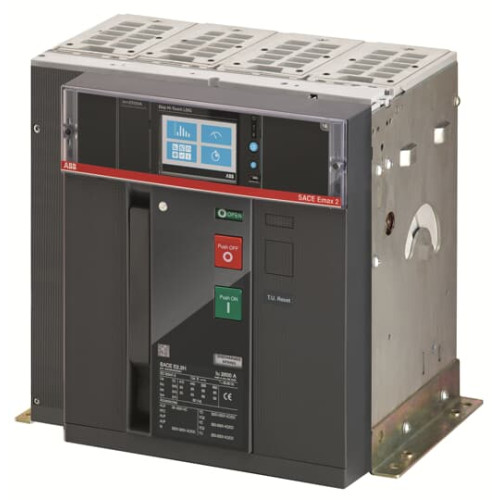

E2.2S 1000 Ekip Touch LSI 4p F HR

Manufacturer's No: 1SDA071565R1     Manufacturer: ABB
E2.2S 1000 Ekip Touch LSI 4p F HR

Availability Back Order

£7,795.85
C.BREAKER SACE EMAX2 E2.2S 1000 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSI R 1000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED


Product

Manufacturer Material ID -
1SDA071565R1
Net Weight -
45.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Degree of protection (IP) -
IP30
With switched-off indicator -
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
85 kiloampere
Adjustment range short-term delayed short-circuit release -
600 Ampere
Adjustment range undelayed short-circuit release -
1500 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP30
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
4
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
400 Ampere
Position of connection for main current circuit -
Back
Power loss -
53 Watt
Rated permanent current Iu -
1000 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Rated voltage -
690 Volt
Switched-off indicator available -
Type of control element -
Push button
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability Back Order

£7,795.85
