1SDA072889R1

E2.2S 800 Ekip Hi-Touch LSIG 4p WMP

Manufacturer's No: 1SDA072889R1     Manufacturer: ABB
E2.2S 800 Ekip Hi-Touch LSIG 4p WMP

Availability Back Order

£11,233.14

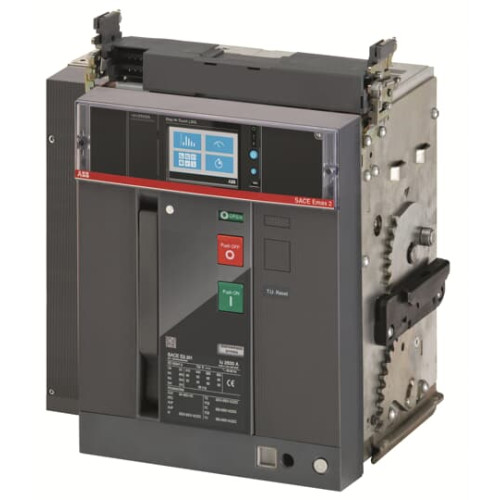

MOVING PART FOR C.BREAKER SACE EMAX2 E2.2S 800 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSIG R 800 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED


Product

Manufacturer Material ID -
1SDA072889R1
Net Weight -
49.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Degree of protection (IP) -
UN
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
85 kiloampere
Adjustment range short-term delayed short-circuit release -
480 Ampere
Adjustment range undelayed short-circuit release -
1200 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP30
Device construction -
Built-in device slide-in technique (withdrawable)
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
4
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
320 Ampere
Position of connection for main current circuit -
Connection at separate chassis part
Power loss -
72 Watt
Rated permanent current Iu -
800 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Rated voltage -
690 Volt
Switched-off indicator available -
Type of control element -
Push button
Type of electrical connection of main circuit -
Connection at separate chassis part
ABB

Availability Back Order

£11,233.14
