1SDA073516R1

E1.2N/MS 630 4p WMP

Manufacturer's No: 1SDA073516R1     Manufacturer: ABB
E1.2N/MS 630 4p WMP

Availability Back Order

£5,120.46

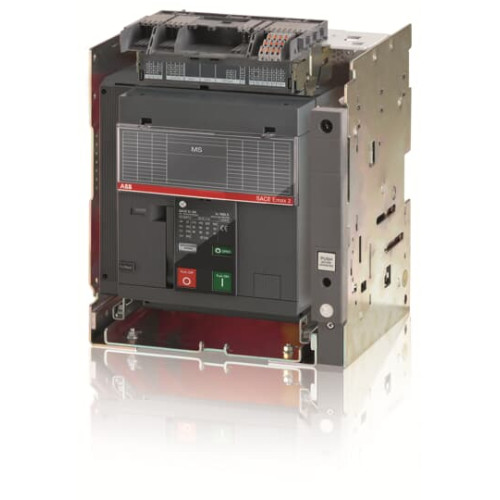

MOVING PART FOR C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E1.2N/MS 630 FOUR-POLE


Product

Manufacturer Material ID -
1SDA073516R1
Net Weight -
14.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Rated operation power at AC-23, 400 V -
- Kilowatt
Switching power at 400 V -
- Kilowatt
Colour control element -
Other
Degree of protection (IP), front side -
IP30
Degree of protection (NEMA) -
Other
Depth -
271 Millimetre
Device construction -
Built-in device slide-in technique (withdrawable)
Height -
363.5 Millimetre
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Number of switches -
0
Rated operating voltage -
690 Volt
Rated permanent current at AC-21, 400 V -
630 Ampere
Rated permanent current at AC-23, 400 V -
630 Ampere
Rated permanent current Iu -
630 Ampere
Rated short-time withstand current lcw -
50 kiloampere
Suitable for distribution board installation -
Type of control element -
Push button
Type of electrical connection of main circuit -
Bolt connection
Version as main switch -
Voltage release optional -
Width -
348 Millimetre
ABB

Availability Back Order

£5,120.46
