1SDA073525R1

E2.2N/MS 800 4p WMP

Manufacturer's No: 1SDA073525R1     Manufacturer: ABB
E2.2N/MS 800 4p WMP

Availability On Request

£5,988.66

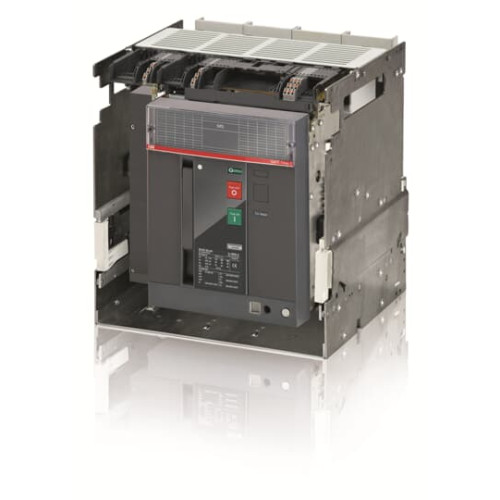

MOVING PART FOR C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E2.2N/MS 800 FOUR-POLE


Product

Manufacturer Material ID -
1SDA073525R1
Net Weight -
49.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Rated operation power at AC-23, 400 V -
- Kilowatt
Switching power at 400 V -
- Kilowatt
Rated operating voltage -
690 Volt
Degree of protection (IP), front side -
IP30
Interlockable -
Version as main switch -
Rated short-time withstand current lcw -
66 kiloampere
Colour control element -
Other
Suitable for distribution board installation -
Max. rated operation voltage Ue AC -
690 Volt
Voltage release optional -
Rated permanent current at AC-21, 400 V -
800 Ampere
Rated permanent current at AC-23, 400 V -
800 Ampere
Degree of protection (NEMA) -
Other
Adjustment range undelayed short-circuit release -
1200 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP30
Device construction -
Built-in device slide-in technique (withdrawable)
Motor drive optional -
Number of auxiliary contacts as change-over contact -
4
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
320 Ampere
Position of connection for main current circuit -
Connection at separate chassis part
Power loss -
72 Watt
Rated permanent current Iu -
800 Ampere
Rated voltage -
690 Volt
Switched-off indicator available -
Type of control element -
Push button
Type of electrical connection of main circuit -
Connection at separate chassis part
ABB

Availability On Request

£5,988.66
