1SDA074642R1

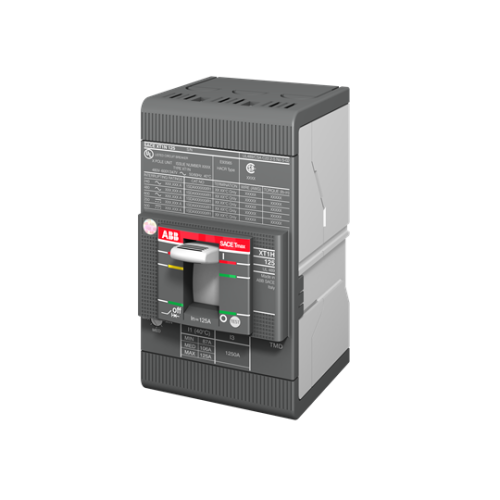

XT1N 125 TMF 60-600 3p F F UL/CSA

Manufacturer's No: 1SDA074642R1     Manufacturer: ABB
XT1N 125 TMF 60-600 3p F F UL/CSA

Availability On Request

£348.65
  • Product: Circuit Breaker TMAX XT1N 125
  • Configuration: Fixed three-pole
  • Terminals: Front
  • Release Type: Thermomagnetic
  • Current Rating: 60-600 A
  • Standards: UL/CSA
  • Model: XT1N 125 TMF


Product

Manufacturer Material ID -
1SDA074642R1
Net Weight -
1.10kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
UNSPSC -
32151705

Technical Specification

Overload release current setting -
60 Ampere
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
25 kiloampere
Adjustment range undelayed short-circuit release -
600 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Position of connection for main current circuit -
Front
Power loss -
3.9 Watt
Rated permanent current Iu -
60 Ampere
Rated voltage -
347 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
