1SDA075118R1

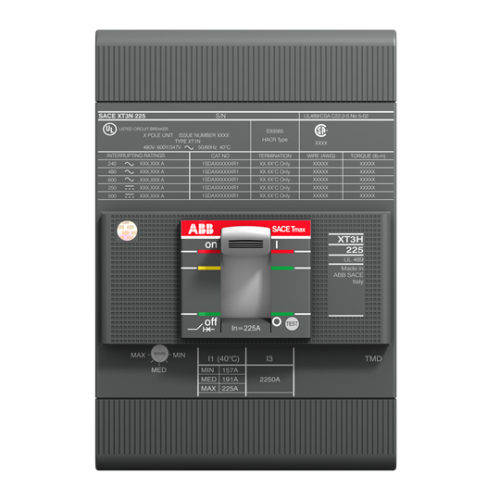

XT3N 225 TMF 225-2250 3p F F UL/CSA

Manufacturer's No: 1SDA075118R1     Manufacturer: ABB
XT3N 225 TMF 225-2250 3p F F UL/CSA

Availability Back Order

£782.17
  • Model: XT3N 225 TMF
  • Type: Circuit Breaker
  • Configuration: Fixed three-pole
  • Terminals: Front
  • Release Type: Thermomagnetic
  • Current Rating: 225-2250 A
  • UL/CSA Listed


Product

Manufacturer Material ID -
1SDA075118R1
Net Weight -
1.70kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
UNSPSC -
32151705

Technical Specification

Overload release current setting -
225 Ampere
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
25 kiloampere
Adjustment range undelayed short-circuit release -
2250 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Position of connection for main current circuit -
Front
Power loss -
14.4 Watt
Rated permanent current Iu -
225 Ampere
Rated voltage -
347 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
