1SL1212A00

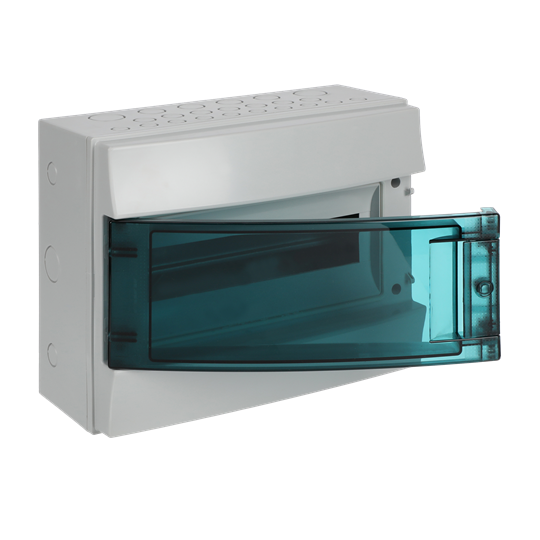

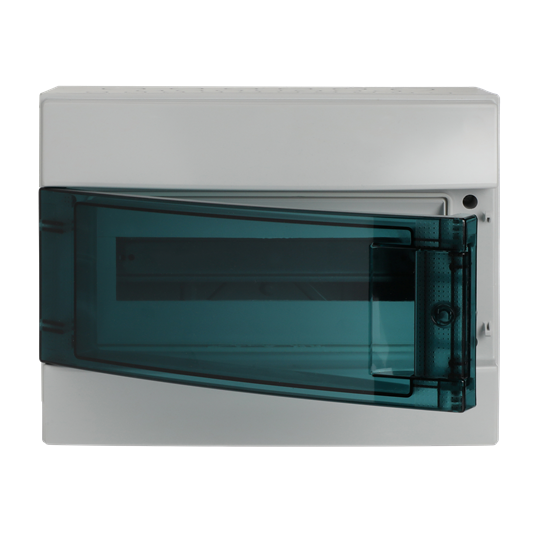

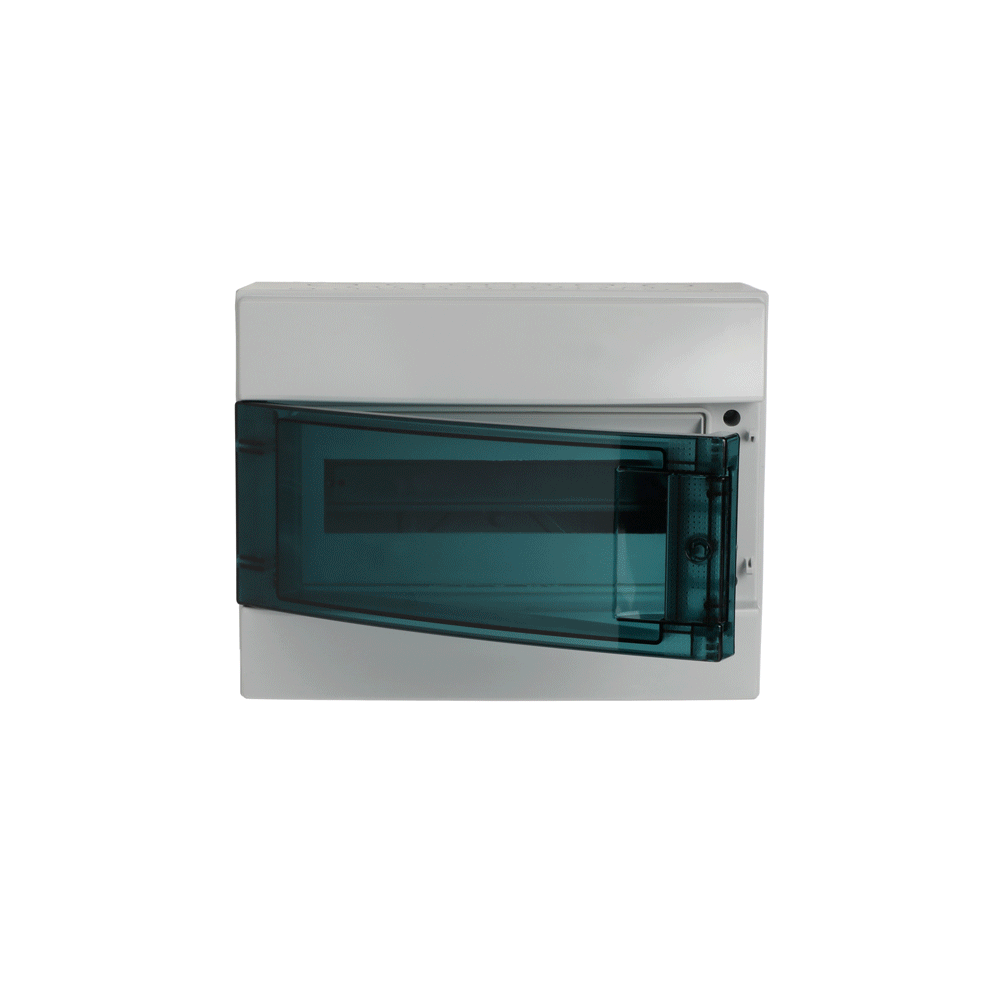

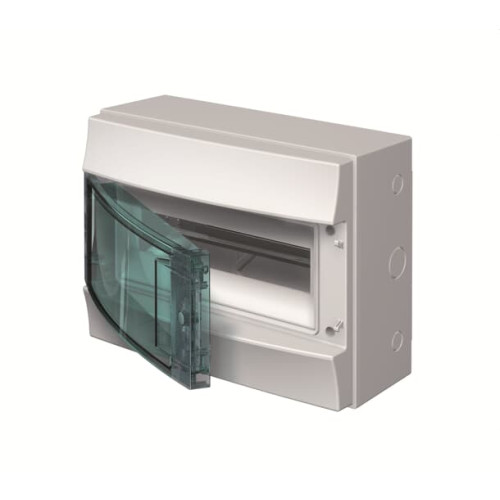

1SLM006500A1212 Consumer unit , Surface mounting, 12 modules, 1 row(s), IP65, Door: Single, Plastic, Transparent, Dimensions: 250

Manufacturer's No: 1SL1212A00     Manufacturer: ABB
1SLM006500A1212 Consumer unit , Surface mounting, 12 modules, 1 row(s), IP65,  Door: Single, Plastic, Transparent, Dimensions: 250 mm x 320 mm x 155 mm

Availability On Request

£50.32
  • Consumer unit for surface mounting
  • 12 modules in a single row
  • IP65 rated for protection
  • Single plastic transparent door
  • Dimensions: 250 mm x 320 mm x 155 mm


Product

Manufacturer Material ID -
1SL1212A00
Net Weight -
1.37kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

RAL-number -
-
Surface protection -
UN
Material -
UN
Colour -
Grey
Cover model -
Closed
Degree of protection (IP rating) -
IP65
Depth -
155 Millimetre
Height -
250 Millimetre
Housing material -
Plastic
Internal depth -
98 Millimetre
Mounting method -
Other
Number of rows -
1
RAL number -
7035
Recess depth -
84 Millimetre
Recess height -
248 Millimetre
Recess width -
318 Millimetre
Transparent cover/door -
Type of closure -
Other
Type of covering -
Door
Type of door -
Single
Width -
320 Millimetre
Width in number of modular spacings -
12
With DIN-rail -
With lock -
ABB
