1FE21458CC101BA2

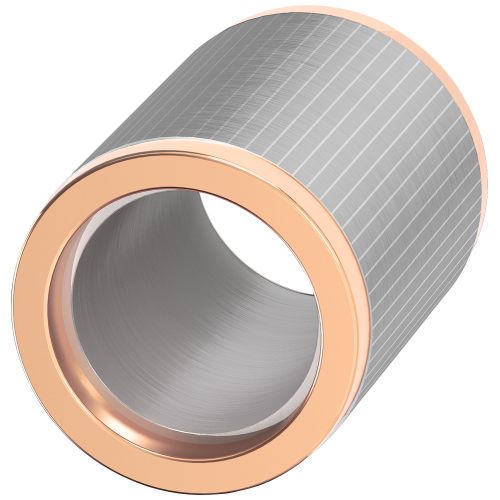

SIMOTICS M-1FE2 Built-in asynchronous motor Individual component stator, rotor, water cooling, IP00 8-pole, Y/D switchable Copper

Manufacturer's No: 1FE2145-8CC10-1BA2     Manufacturer: Siemens
SIMOTICS M-1FE2 Built-in asynchronous motor Individual component stator, rotor, water cooling, IP00 8-pole, Y/D switchable Copper rotor Y: PN = 22 ...

Availability On Request

POA
  • SIMOTICS M-1FE2 Built-in asynchronous motor
  • 8-pole motor with Y/D switchable configuration
  • Copper rotor with Y configuration:
    • Rated power: 22 kW
    • Rated speed: 500 rpm
    • Rated torque: 420 Nm
    • Maximum speed: 6000 rpm
    • Rated current: 60 A
  • Copper rotor with D configuration:
    • Rated power: 25 kW
    • Rated speed: 1500 rpm
    • Rated torque: 159 Nm
    • Maximum speed: 10000 rpm
    • Rated current: 58 A
  • Water cooling system with temperature sensor Pt1000
  • Standard protection with Pt1000 bare cable ends (0.5 m length)
  • Encapsulated winding without cooling jacket
  • No rotor sleeve included


Product

Manufacturer Material ID -
1FE2145-8CC10-1BA2
Net Weight -
119.00kg

Additional Product Information

Commodity Code -
85030099
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
26101109

Availability On Request

POA
