1FG12081QF432AG1-Z D01+K06

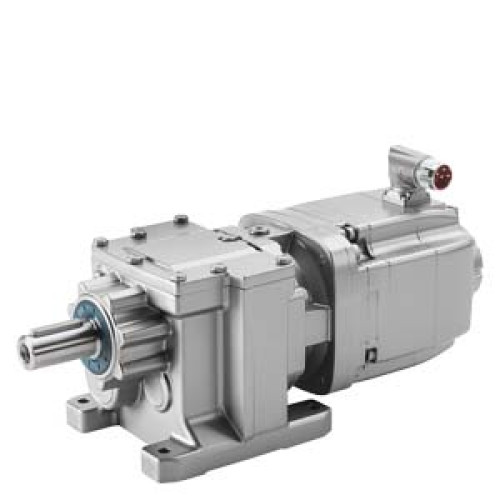

SIMOTICS S-1FG1 synchronous servo geared motor helical gearbox D89 motor type CT 600V AH80 Mmax=61.0 Nm Pn=3.30 kW Solid shaft wit

Manufacturer's No: 1FG1208-1QF43-2AG1-Z D01+K06     Manufacturer: Siemens
SIMOTICS S-1FG1 synchronous servo geared motor helical gearbox D89 motor type CT 600V AH80 Mmax=61.0 Nm Pn=3.30 kW Solid shaft with keyway V50x 100 ABSOLUTE ENCODER SINGLETURN 20 BIT WITH DRIVE-CLIQ

Availability On Request

POA
  • SIMOTICS S-1FG1 synchronous servo geared motor
  • Motor type: D89
  • Rated torque: 61.0 Nm
  • Rated power: 3.30 kW
  • Solid shaft with keyway V50x100
  • Absolute encoder singleturn 20 bit with DRIVE-CLIQ interface (AS20DQI)
  • Gear ratio: 110.57
  • Maximum speed N1: 4500 RPM
  • Maximum speed N2: 41 RPM
  • Maximum torque M2: 1920 Nm

Read more

  • Mounting position: M1
  • Oil: CLP VG220


Product

Manufacturer Material ID -
1FG1208-1QF43-2AG1-Z D01+K06
Net Weight -
100.80kg

Additional Product Information

Commodity Code -
85015220
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
26101109

Availability On Request

POA
