1FG15011RD232AV1-Z D14+G23+K07

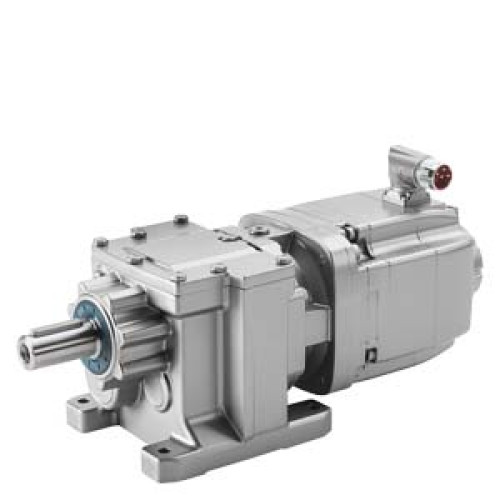

SIMOTICS S-1FG1 synchronous servo geared motor bevel gearbox B29 motor type CT 600V AH48 Mmax=10.5 Nm Pn=0.74 kW Solid shaft with

Manufacturer's No: 1FG1501-1RD23-2AV1-ZD14+G23+K07     Manufacturer: Siemens
SIMOTICS S-1FG1 synchronous servo geared motor bevel gearbox B29 motor type CT 600V AH48 Mmax=10.5 Nm Pn=0.74 kW Solid shaft with keyway V20x 40 ABSOLUTE ENCODER 20 BIT + 12 BIT MULTITURN WITH DRIVE-C

Availability On Request

POA
  • SIMOTICS S-1FG1 synchronous servo geared motor
  • Motor type: CT 600V AH48
  • Maximum torque: 10.5 Nm
  • Rated power: 0.74 kW
  • Solid shaft with keyway V20x40
  • Absolute encoder: 20-bit + 12-bit multiturn
  • Drive-CLiQ interface
  • Foot-mounted type
  • Gear ratio: 28.11
  • Maximum speeds: N1MAX=4500 RPM, N2MAX=160 RPM

Read more

  • Maximum torque: M2MAX=114 Nm
  • Mounting position: M4-A
  • Long-life sealing oil: CLP PG VG220


Product

Manufacturer Material ID -
1FG1501-1RD23-2AV1-ZD14+G23+K07
Net Weight -
11.50kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
26101109

Availability On Request

POA
