1FG16035QD232FC2-Z D15+K12+N23

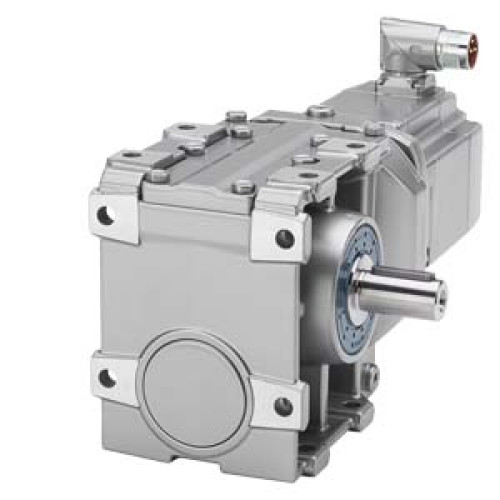

SIMOTICS S-1FG1 synchronous servo geared motor helical worm gear unit C49 motor type CT 600V AH48 Mmax=10.5 Nm Pn=0.74 kW Hollow s

Manufacturer's No: 1FG1603-5QD23-2FC2-Z D15+K12+N23     Manufacturer: Siemens
SIMOTICS S-1FG1 synchronous servo geared motor helical worm gear unit C49 motor type CT 600V AH48 Mmax=10.5 Nm Pn=0.74 kW Hollow shaft with keyway H30x150 ABSOLUTE ENCODER SINGLETURN 20 BIT WITH DRIV

Availability On Request

POA
  • Motor Type: SIMOTICS S-1FG1
  • Motor Power: 0.74 kW
  • Maximum Torque: 10.5 Nm
  • Transmission Ratio: 91.93
  • Maximum Speed (Input): 4500 rpm
  • Maximum Speed (Output): 37 rpm
  • Maximum Torque (Output): 365 Nm
  • Hollow Shaft Size: H30x150 with keyway
  • Encoder: ABSOLUTE ENCODER SINGLETURN 20 BIT (ENCODER AS20DQI) with DRIVE-CLIQ Interface
  • Mounting Position: M5-A

Read more

  • Holding Brake: Standard
  • Oil: CLP ISO PAO VG220


Product

Manufacturer Material ID -
1FG1603-5QD23-2FC2-Z D15+K12+N23
Net Weight -
27.65kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
26101109

Availability On Request

POA
