1FK22104AB001SB0

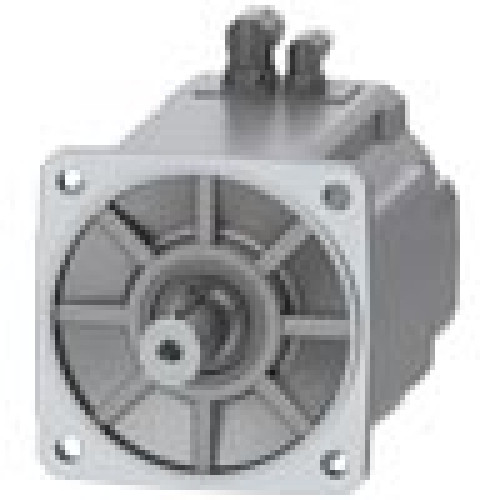

SIMOTICS S-1FK2 CT servo motor M0=40 Nm; PN = 5.4 kW at nN=1500 rpm (380-480 V); PN = 3.05 kW at nN=750 rpm (200-240 V); degree of

Manufacturer's No: 1FK2210-4AB00-1SB0     Manufacturer: Siemens
SIMOTICS S-1FK2 CT servo motor M0=40 Nm; PN = 5.4 kW at nN=1500 rpm (380-480 V); PN = 3.05 kW at nN=750 rpm (200-240 V); degree of protection IP64; shaft D38x80 mm with feather key; absolute encoder

Availability On Request

£2,759.83
  • Model: SIMOTICS S-1FK2 CT Servo Motor
  • Torque: M0 = 40 Nm
  • Power Rating:
    • 5.4 kW at nN = 1500 rpm (380-480 V)
    • 3.05 kW at nN = 750 rpm (200-240 V)
  • Degree of Protection: IP64
  • Shaft Dimensions: D38x80 mm with feather key
  • Encoder: Absolute encoder single-turn 22-bit (encoder AS22DQC)
  • Connectivity:
    • DRIVE-CLiQ plug M17
    • Power connector size M23


Product

Manufacturer Material ID -
1FK2210-4AB00-1SB0
Net Weight -
29.10kg

Additional Product Information

Commodity Code -
85015220
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N_CNDU
UNSPSC -
1.95126E+11

Technical Specification

Model -
UN
Voltage type -
UN
Rated current -
- Ampere
Rated voltage -
- Volt
Number of phases -
-
Energy efficiency class -
UN
Construction type -
UN
Number of poles -
-
Rated frequency -
- Hertz
Operation temperature -
- Degrees celsius
Rated rotational speed at rated frequency -
- Per minute
Rated performance at rated frequency -
- Kilowatt
Degree of protection (IP) -
UN
Duty cycle -
UN
Frame size acc. IEC -
- Millimetre
Full-load efficiency -
- Percentage
Starting current ratio -
-
Starting torque ratio -
-
Breakdown torque ratio -
-
Voltage anti-condensation heater -
- Volt
Output power anti-condensation heater -
- Watt
Intrinsic safety (IS) -
UN
Cooling method -
UN
Shaft end type -
UN
Vacuum pressure impregnation (VPI) -
UN
Degree of protection (NEMA) -
UN
Bearing -
UN
Insulation class acc. IEC -
UN
Nominal torque -
- Newtonmetre
Power factor -
-

Availability On Request

£2,759.83
Sign in or Register for customer prices.
