1FN34503WB500AA3

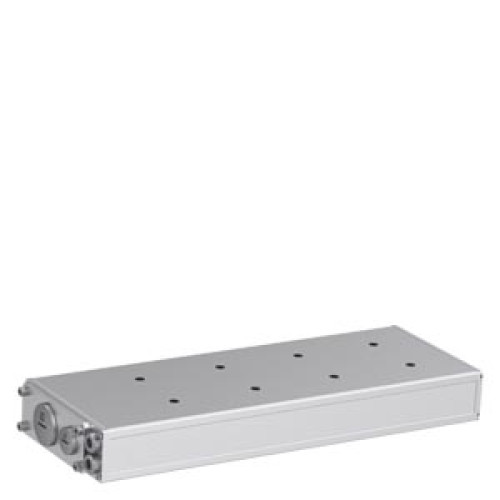

SIMOTICS L primary section; component 3-phase synchronous motor peak load version Fn=2900 N; Fmax=7760 N Vmax/Fn= 236 m/min Vmax/F

Manufacturer's No: 1FN3450-3WB50-0AA3     Manufacturer: Siemens
SIMOTICS L primary section; component 3-phase synchronous motor peak load version Fn=2900 N; Fmax=7760 N Vmax/Fn= 236 m/min Vmax/Fmax= 102 m/min In=22.9 A; Imax=67.4 A with PTC120 and temperature sen

Availability On Request

POA
  • SIMOTICS L Primary Section
  • Component: 3-Phase Synchronous Motor
  • Version: Peak Load
  • Nominal Force (Fn): 2900 N
  • Maximum Force (Fmax): 7760 N
  • Maximum Velocity at Nominal Force (Vmax/Fn): 236 m/min
  • Maximum Velocity at Maximum Force (Vmax/Fmax): 102 m/min
  • Nominal Current (In): 22.9 A
  • Maximum Current (Imax): 67.4 A
  • Includes PTC120 and Temperature Sensor Pt1000

Read more

  • Combined Connection for Power and Signal
  • Connection via Terminal Box PG


Product

Manufacturer Material ID -
1FN3450-3WB50-0AA3
Net Weight -
26.20kg

Additional Product Information

Commodity Code -
85030099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N

Technical Specification

Model -
UN
Voltage type -
UN
Rated current -
- Ampere
Rated voltage -
- Volt
Number of phases -
-
Energy efficiency class -
UN
Construction type -
UN
Number of poles -
-
Rated frequency -
- Hertz
Operation temperature -
- Degrees celsius
Rated rotational speed at rated frequency -
- Per minute
Rated performance at rated frequency -
- Kilowatt
Degree of protection (IP) -
UN
Duty cycle -
UN
Frame size acc. IEC -
- Millimetre
Full-load efficiency -
- Percentage
Starting current ratio -
-
Starting torque ratio -
-
Breakdown torque ratio -
-
Voltage anti-condensation heater -
- Volt
Output power anti-condensation heater -
- Watt
Intrinsic safety (IS) -
UN
Cooling method -
UN
Shaft end type -
UN
Vacuum pressure impregnation (VPI) -
UN
Degree of protection (NEMA) -
UN
Bearing -
UN
Insulation class acc. IEC -
UN
Nominal torque -
- Newtonmetre
Power factor -
-

Availability On Request

POA
Sign in or Register for customer prices.
