1FT71055SF703BG0

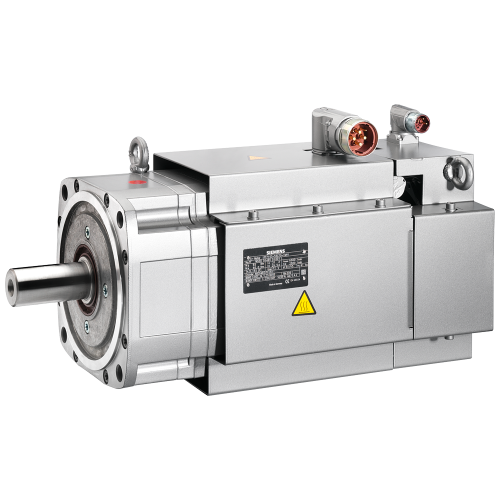

SIMOTICS S Synchronous motor 1FT7, M0=65Nm (100K) NN=3000rpm, PN=15.10kW Forced ventilation Frame si

Manufacturer's No: 1FT7105-5SF70-3BG0     Manufacturer: Siemens
SIMOTICS S Synchronous motor 1FT7, M0=65Nm (100K) NN=3000rpm, PN=15.10kW Forced ventilation Frame si

Availability Back Order

£5,846.73
  • SIMOTICS S Synchronous motor 1FT7
  • Rated torque: 65 Nm
  • Rated speed: 3000 rpm
  • Rated power: 15.10 kW
  • Frame size: IMB 5 (IM V1, IM V3) with recessed flange for a more compact design
  • Power connector: Outgoing connector in axial non-drive end
  • Absolute value encoder: Singleturn 24 bit with DRIVE-CLIQ interface (ENCODER AS24DQI)
  • Shaft type: Plain shaft without holding brake
  • Accuracy tolerance: N vibration severity grade A
  • Degree of protection: IP 64
Instructional video
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
1FT7105-5SF70-3BG0
Net Weight -
64.00kg

Additional Product Information

Commodity Code -
85015230
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
26101115

Availability Back Order

£5,846.73
Sign in or Register for customer prices.
