1LE56043AB734AB3

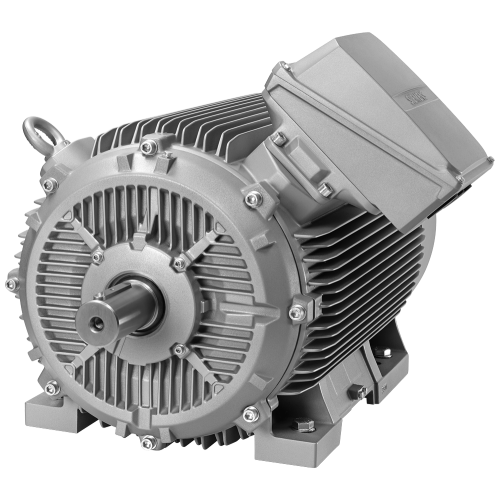

SD motor type: 1CV4317B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B)

Manufacturer's No: 1LE5604-3AB73-4AB3     Manufacturer: Siemens
SD motor type: 1CV4317B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron h...

Availability On Request

£50,372.00
  • Motor Type: SIMOTICS SD 1CV4317B
  • Low-voltage motor with IEC squirrel-cage rotor
  • Self-cooled with IP55 protection
  • Temperature class: 155(F) according to 130(B)
  • Housing material: Gray cast iron
  • Premium Efficiency IE4
  • 4-pole motor with frame size 315L
  • Power output: 315 kW (50 Hz)
  • Standard color: RAL 7030


Product

Manufacturer Material ID -
1LE5604-3AB73-4AB3
Net Weight -
1,560.00kg

Additional Product Information

Country of Origin -
CZ
UNSPSC -
26101115

Technical Specification

Breakdown torque ratio -
3.5
Cooling method -
Air
Full-load efficiency -
96.7 Percentage
Number of poles -
4
Power factor -
0.83
Rated current -
570 Ampere
Rated performance at rated frequency -
315 Kilowatt
Rated rotational speed at rated frequency -
1489.8 Per minute
Rated voltage -
400 Volt
Starting current ratio -
8.5
Starting torque ratio -
3.2

Availability On Request

£50,372.00
