1MB16113AC690AB4-Z B02+B40+G30+G43+M4B+Q02+S03+Y68

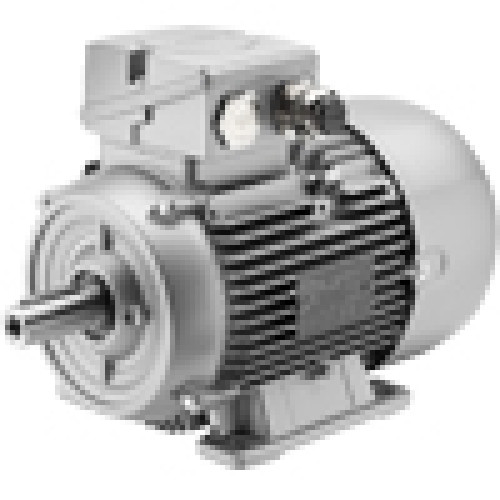

SIMOTICS XP Motor type: 1CV2316C Low-voltage motor, IEC squirrel-cage rotor, self-ventilated, IP65 t

Manufacturer's No: 1MB1611-3AC69-0AB4-Z B02+B40+G30+G43+M4B+Q02+S03+Y68     Manufacturer: Siemens
SIMOTICS XP Motor type: 1CV2316C Low-voltage motor, IEC squirrel-cage rotor, self-ventilated, IP65 t

Availability Back Order

POA
  • Motor Type: SIMOTICS XP 1CV2316C
  • Low-voltage motor with IEC squirrel-cage rotor
  • Self-ventilated design with IP65 protection
  • Temperature class: 155(F)
  • Performance line: High Efficiency IE2 6-pole
  • Size: 315L
  • Power: 160 kW (50 Hz), 192 kW (60 Hz)
  • Suitable for Zone 21 and Zone 22 with conductive dust
  • Voltage: 400 V
  • Mounting of explosion-protected rotary pulse encoder for Zones 2, 21, and 22

Read more

  • Features PTC thermistors for disconnection
  • Terminal box located at the top
  • Acceptance test certificate 3.1 according to EN 10204
  • Version EX T for converter operation with SINAMICS G120 PM 240-2
  • Anti-condensation heating for 230 V
  • Special sea air resistant paint finish
  • Option for alternative converter


Product

Manufacturer Material ID -
1MB1611-3AC69-0AB4-Z B02+B40+G30+G43+M4B+Q02+S03+Y68
Net Weight -
1,160.00kg

Additional Product Information

Commodity Code -
85015381
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
26101109

Availability Back Order

POA
