1MB16331AB434AB4-Z C02

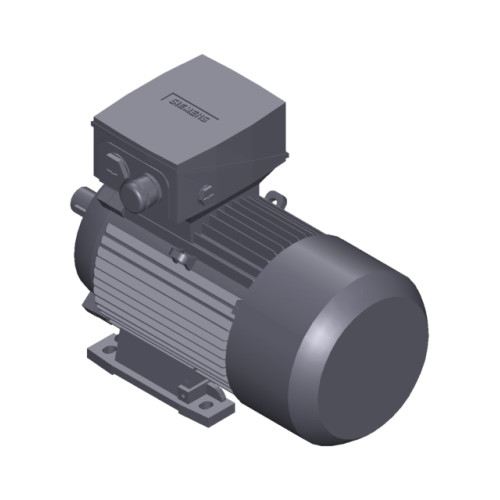

SIMOTICS XP Motor type: 1CV3104B Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 T

Manufacturer's No: 1MB1633-1AB43-4AB4-Z C02     Manufacturer: Siemens
SIMOTICS XP Motor type: 1CV3104B Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 T

Availability Back Order

POA
  • SIMOTICS XP Motor type: 1CV3104B
  • Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated
  • IP55 protection rating
  • Premium Efficiency IE3 4-pole motor
  • Size: 100L
  • Power: 2.2 kW (50 Hz), 2.55 kW (60 Hz)
  • Suitable for Zone 2 according to IEC/EN 60 079-7
  • Voltage: 400 VD/690 VY (50 Hz), 460 VD (60 Hz)
  • IM B3 mounting
  • Temperature class 155(F) according to 130(B) cast iron frame

Read more

  • Equipped with 3 PTC thermistors for disconnection
  • Terminal box located at the top


Product

Manufacturer Material ID -
1MB1633-1AB43-4AB4-Z C02
Net Weight -
40.00kg

Additional Product Information

Commodity Code -
85015220
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
26101601

Availability Back Order

POA
Sign in or Register for customer prices.
